Alumina Ceramic Sleeves

Shengda Ceramic provide all kinds of Alumina Ceramic Sleeves

Product Introduction

Product description

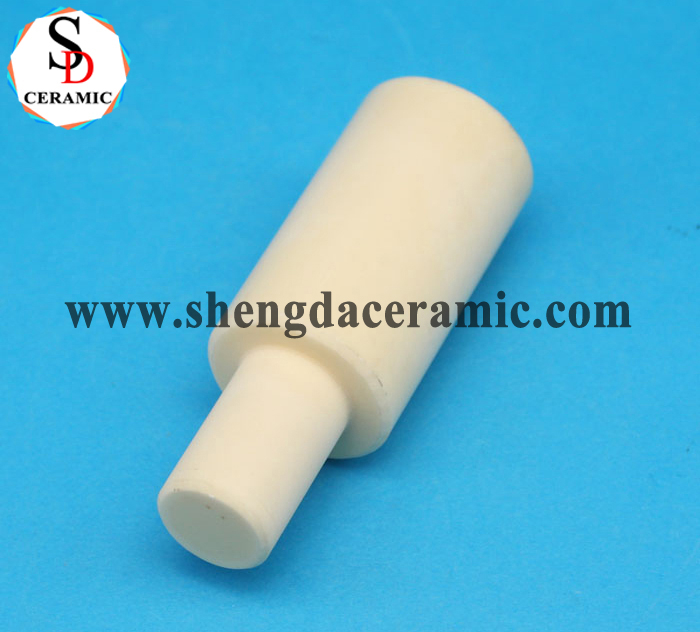

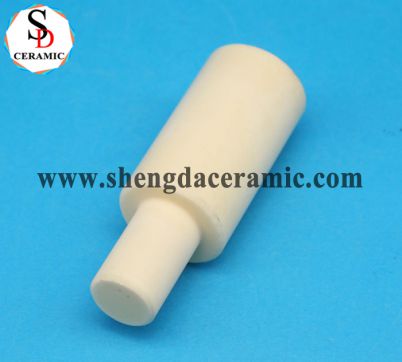

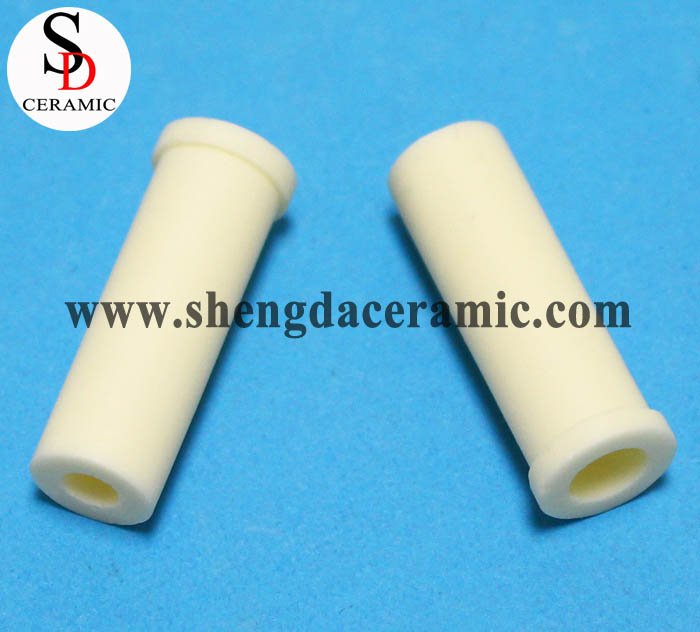

Alumina Ceramic Sleeves

Alumina ceramics are classified into high-purity type and ordinary type. The high-purity alumina ceramics have a Al2O3 content of 99.9% or more. Since the sintering temperature is as high as 1650-1990 ° C and the transmission wavelength is 1 to 6 μm, the molten glass is generally used to replace the platinum crucible; Sexual and alkali-resistant metal corrosion is used as a sodium lamp; it can be used as an integrated circuit substrate and high-frequency insulation material in the electronics industry.

Shengda Ceramic provide all kinds of 2, 4, 6 holes alumina ceramic tubes. Also the rings, rods, tubes, plates, inserts, bushing, sleeves, blocks, plunger and so on. Any dimension requirement, please contact us.



Alumina Ceramic Sleeves




Technical Parameters


Advanced Industrial Thermal Alumina Ceramic Tubes

Performance

Item

Index

Unit

Steatite

95 Al2O3

99 Al2O3

Physical Characteristics

Bulk density

g/cm 3

2.7

3.6

3.6

Water absorption

%

0

0

0

Mechanical Characteristics

Flexural strength

Mpa

145

320

340

Hardness Vickers

Gpa

5.7

12.2

13.5

Elastic modulus

Gpa

120

280

320

Thermal Characteristics

Poisson's ratio

-

0.21

0.22

0.23

Expansion coefficient

10-6/℃

7.9

7.1

7.2

Thermal conductivity

w/(m . k)

2.5

16

24

Specific Heat

10-3 J/ (kg * K)

0.75

0.78

0.78

Electrical Characteristics

Dielectric constant

-

6.2

9

9.4

Dielectric loss angle

*10 -4

18

15

5

Dielectric strength

*10 6 V/m

18

12

15


Production process

Advanced Industrial Thermal Alumina Ceramic Tubes


Features

1) A variety of specifications available.

2) Satisfy various technical request

3) Lower medium spoilage

4) Good insulation performance and high temperature resistance

5) High strength

6) Used in all electric products, electric heating products and wear resistant machinery parts.

7) OEM, ODM and OBM are welcomed


Production equipment

Advanced Industrial Thermal Alumina Ceramic Tubes


Our advantage

● Certificates: ISO & SGS

● OEM & ODM: OEM & ODM service is available

● Strict testing procedures :Meeting the requirements of the product design and process, providing reliable testing data.

● Short Delivery time:If less than 1000 pieces, it only takes around 5 days. We also stock some standard-sized products, if you need urgently, we can delivery very soon.

● Best ex-factory price

● Worldwide customers

● Customized according to needs

● Continuous research and development of new products

● Customer service:If you find some quality problem, please contact us, we’ll deal with it as soon as possible.


Our certificate

Alumina Zirconia Electrical Ceramic Plunger Parts Insulator


Packaging and shipping

Our customers have a wide range of processing choices for transportation mode.

● By Express (FedEx, UPS, DHL, TNT, EMS, etc...)

--- Advantage: Fast ( takes about 7 - 10 days in the delivery ), door to door

--- Disadvantage: A little expensive

● By Air Transportation

--- Advantage: Fast ( takes about 8 - 12 days ), a little cheaper than Express.

--- Disadvantage: You need to take the goods from the airport by yourself.

● By Sea ( Ocean ) Transportation

--- Advantage: Much cheaper than Express or Air transportation.

--- Disadvantage: Slow and you need to take the goods from your destination port by yourself.
