Home > Products > Alumina Ceramics > 99% Alumina Ceramics > Corrosion Resistant 99 Alumina Ceramic Filling Pump Al2O3 Ceramic Parts

Corrosion Resistant 99 Alumina Ceramic Filling Pump Al2O3 Ceramic Parts

Shengda Ceramic provide all kinds of Al2O3 Alumina Engineering Ceramic Thin Substrate/Sheet/Plate/Board.

Product Introduction

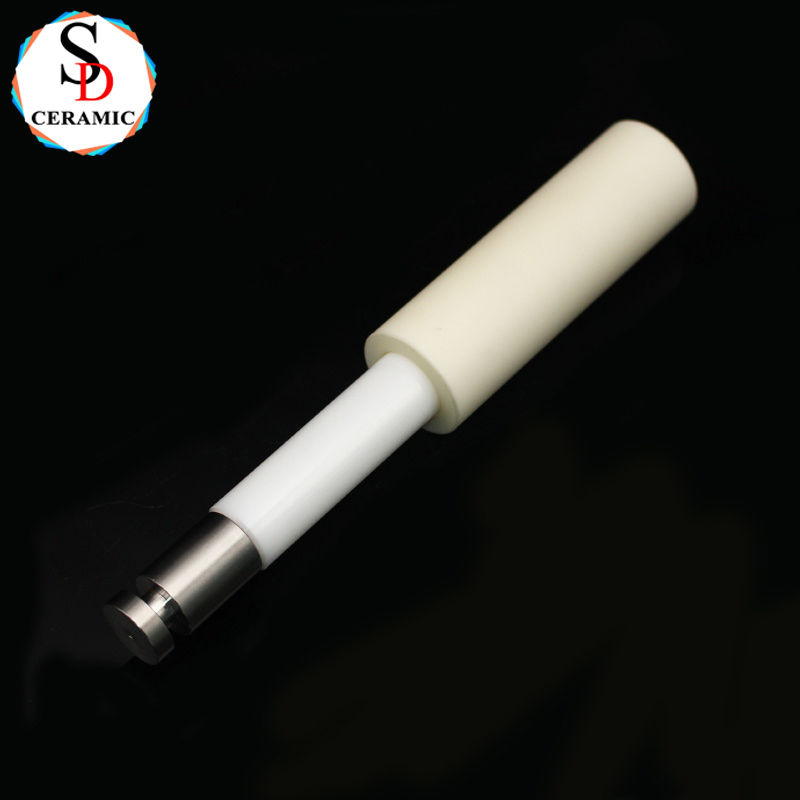

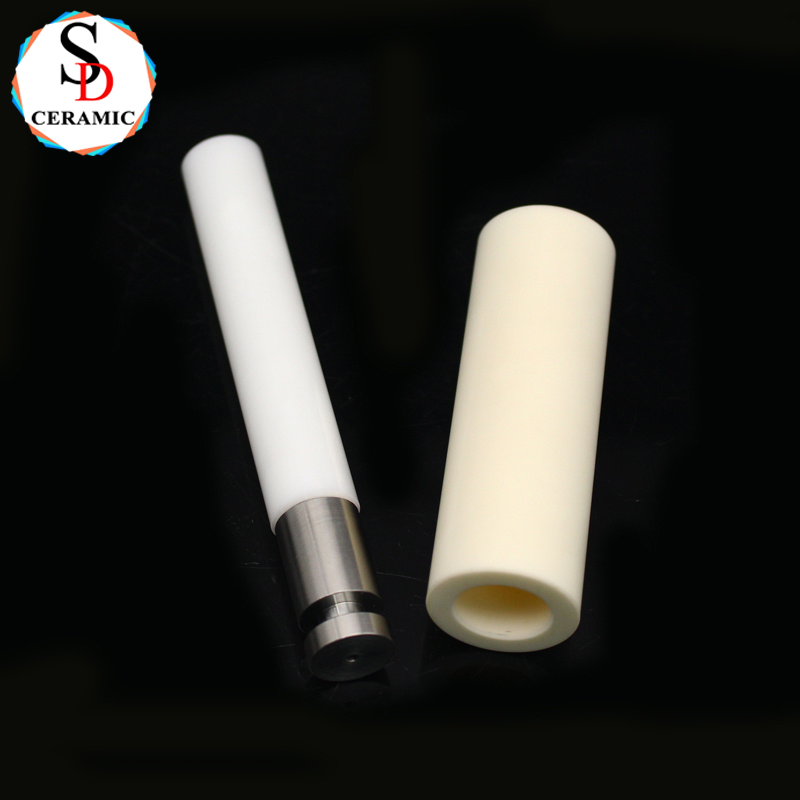

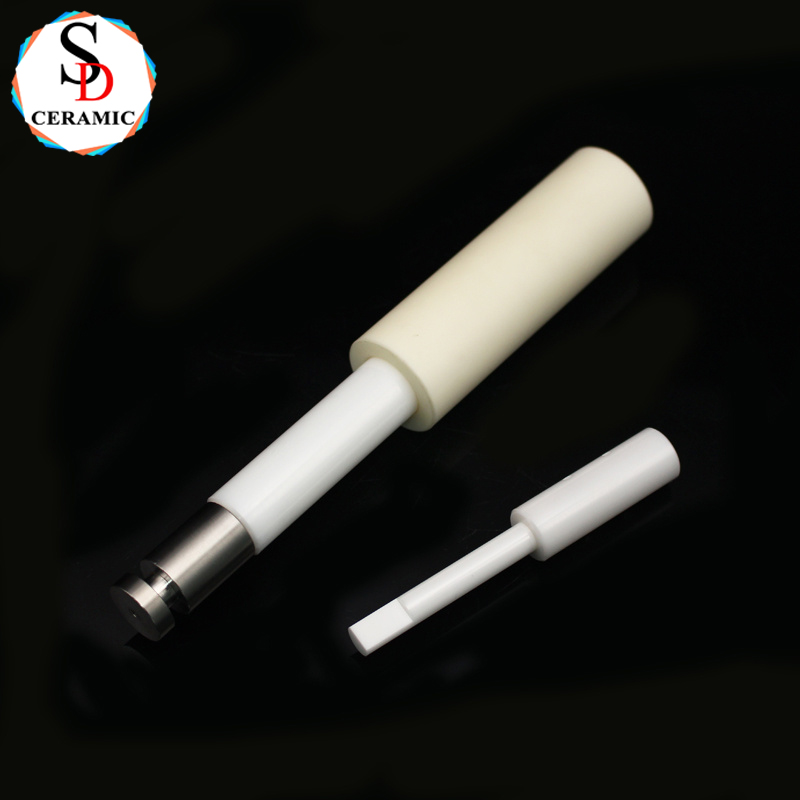

Our 99% Alumina Ceramic Filling Pump (Al₂O₃ Ceramic Pump) is engineered for precision liquid transfer in corrosive, high-wear, and high-temperature environments. Made from 99% pure alumina ceramic (Al₂O₃), this ceramic pump delivers unmatched corrosion resistance, wear durability, and chemical stability, outperforming metal or plastic alternatives.


Key Technical Parameters

Material: 99% Al₂O₃ alumina ceramic (ISO 6474-1 standard)

Density: ≥3.85 g/cm³

Hardness: HV 1500-1700 (Mohs 9)

Max. Temperature Resistance: 1,600°C (2,912°F)

Corrosion Resistance: Impervious to acids (HCl, H₂SO₄, HNO₃), alkalis, and organic solvents

Surface Finish: Ra ≤0.2μm (mirror polishing available)

Pressure Rating: Up to 1.5 MPa (customizable)

Leakage Rate: <0.01% (zero seepage design)


Why Choose Our Alumina Ceramic Pump?

Ultra-Long Lifespan – Ceramic filling pumps last 10x longer than stainless steel in abrasive slurries.

Zero Contamination – Ideal for pharmaceutical, food-grade, and semiconductor applications.

Energy Efficient – Smooth ceramic surfaces reduce friction losses by 30% vs. metal pumps.


Corrosion Resistant 99 Alumina Ceramic Filling Pump Al2O3 Ceramic Parts

Corrosion Resistant 99 Alumina Ceramic Filling Pump Al2O3 Ceramic Parts

Industry Applications

Chemical Processing: Transfers concentrated acids/alkalis without degradation.

Pharmaceutical: FDA-compliant dosing for sterile fluids.

Electronics: Ultra-pure chemical delivery for PCB etching.

Mining: Handles abrasive slurries with minimal wear.

Energy: Biofuel metering and high-temperature fluid handling.


Customization Options

We offer custom ceramic pumps tailored to:

Size/Port Configurations (DN10-DN100)

Coatings (PTFE, zirconia-reinforced)

Seals (mechanical, magnetic drive)

Certifications (ISO 9001, RoHS, REACH)

Request a Quote Today! Contact us for alumina ceramic pump solutions optimized for your specific flow rate, viscosity, and chemical compatibility needs.


Technical Parameters

Properties
Units
Steatite Ceramic
Cordierite Ceramic
Mullite
Ceramic
95%
Al2O3
99%
Al2O3
Zirconia
Ceramic
Silicon
Nitride
Colour

White
Yellow
White
White
Ivory
White
Grey
Density
g/cm3
2.7
1.9
2.6
3.5
3.85
6
3.2
Flexural Strength
Mpa
140
30
120
280
340
1150
600
Compressive Strength
MPa
900
350
500
2100
2200
2500
2500
Max Use Temperature
°C
1000
1200
1300
1400
1650
1500
1800
Thermal Condutivity
W(m.K)
2~3
1.3~1.8
2~6
16~28
19~30
2.5
20
Thermal Expansion Cofficient
10-6/°C
7 ~ 9
1.5~3.5
5~6
6.5~7.5
6~8
8~10
3~4
ThermalShock Resistance
△TC
100
300
150
140
150
250
600
Specific Heat
J/kg.K
850
800
900
950
950
500
500
Dielectric Strength
KV/mm
20
30
12
10
5
20
Dielectric Constant
Er
6
8
9
9
12
6

Production process

Precision CNC Alumina Ceramic Setter Flat Plate


Certifications

Precision CNC Alumina Ceramic Setter Flat Plate

Precision CNC Alumina Ceramic Setter Flat Plate

Our advantage

● Certificates: ISO & SGS

● OEM & ODM: OEM & ODM service is available

● Strict testing procedures :Meeting the requirements of the product design and process, providing reliable testing data.

● Short Delivery time:If less than 1000 pieces, it only takes around 5 days. We also stock some standard-sized products, if you need urgently, we can delivery very soon.

● Best ex-factory price

● Worldwide customers

● Customized according to needs

● Continuous research and development of new products

● Customer service:If you find some quality problem, please contact us, we’ll deal with it as soon as possible.


Packaging and shipping


Precision CNC Alumina Ceramic Setter Flat Plate

Our customers have a wide range of processing choices for transportation mode.

Precision CNC Alumina Ceramic Setter Flat Plate

Our Main Products

Precision CNC Alumina Ceramic Setter Flat Plate


Company Profie

Zirconia Ceramic Screw Nuts


   Yixing Shengda Refractory Ceramic Co., Ltd, established in 1995, Yixing, China with an area of 4,000 square meters and fixed assets of over 1 million US dollars, is a professional manufacturer of Steatite Ceramic Parts, Alumina Ceramic Parts, Cordierite Ceramic Parts, Ceramic Band Heater Insulators, Ceramic Terminal Block, Thermostat Ceramic Parts, Zirconia Ceramics Parts, Ceramic Heater Plugs, etc.

    Shengda Ceramic equipped with CAD/CAXA/Solidworks software to provide professional OEM & ODM service.

    Looking forward to co-operating with the customers from all over the world!
