Custom High Strength Zirconia Ceramic Strip Support OEM

Product Overview

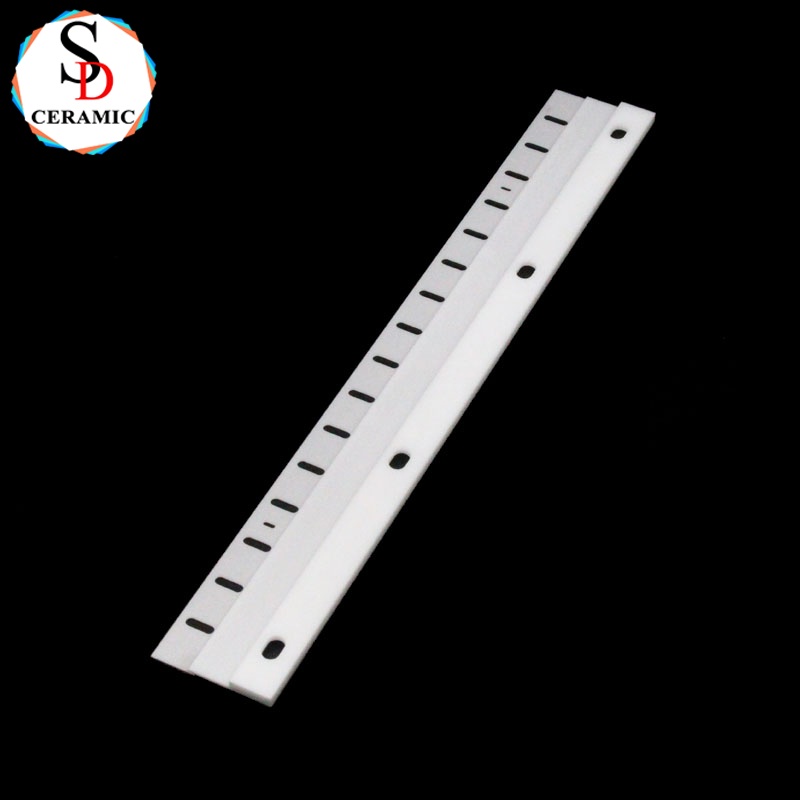

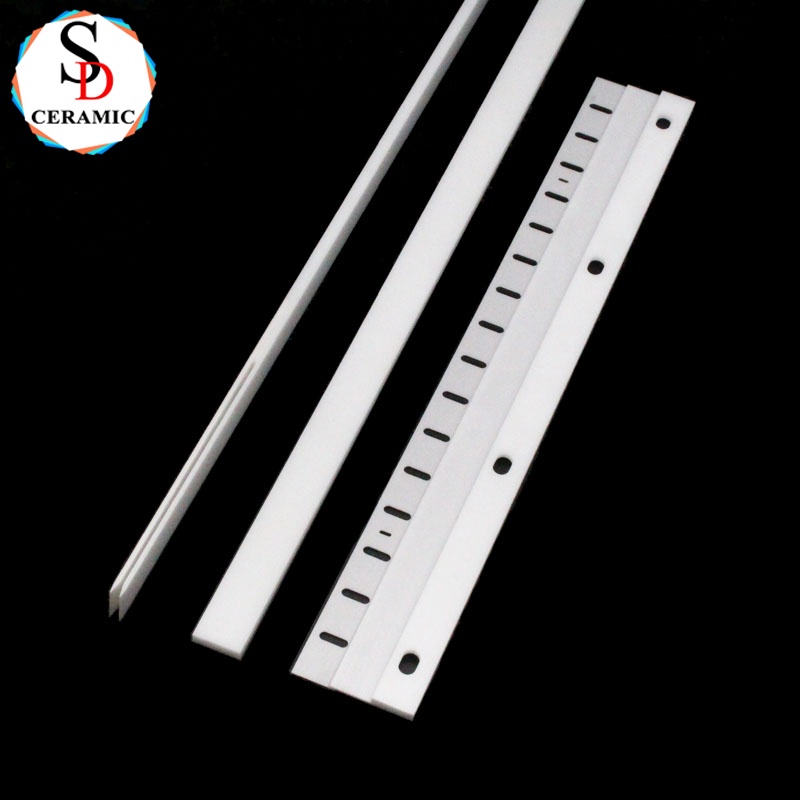

Our high-performance zirconia (ZrO₂) ceramic strips are engineered for applications requiring exceptional mechanical strength, wear resistance, and thermal stability. Customizable in dimensions, thickness, and surface finishes for OEM integration.

Key Technical Specifications

✅ Material: 3Y-TZP (Yttria-Stabilized Zirconia) – 94% ZrO₂ + 5.2% Y₂O₃

✅ Density: ≥6.05 g/cm³ – Near-zero porosity structure

✅ Flexural Strength: 1,200–1,500 MPa (3× stronger than alumina)

✅ Hardness: 1,200–1,300 HV – Superior abrasion resistance

✅ Fracture Toughness: 6–8 MPa·m¹/² – Resists chipping/cracking

✅ Thermal Stability: Up to 800°C continuous use (1,200°C intermittent)

✅ Surface Finish: Polished (Ra <0.05µm) or as-sintered (Ra 0.2µm)

✅ Standard Dimensions:

Thickness: 0.5–20mm (±0.02mm tolerance)

Width: 5–200mm

Length: 10–500mm (custom up to 1,000mm)

Industry Applications

1. Medical & Dental Equipment

Surgical guide rails – Biocompatible (ISO 13356), MRI-safe

Dental implant abutments – Wear-resistant, precision-fit

2. Semiconductor Manufacturing

Wafer handling arms – Non-contaminating, static-free

Plasma-resistant shields – For etch/CVD chambers

3. Industrial Machinery

Wear-resistant guides – 10× lifespan vs. steel in abrasive environments

Precision bearing strips – Eliminates lubrication needs

4. Energy & Automotive

Fuel cell stack separators – High ionic resistivity

Sensor mounting plates – Thermal cycling resistant

5. Cutting & Tooling

Laser nozzle liners – Withstand abrasive particle erosion

Textile machine components – Resists fiber friction

Why Choose Our Zirconia Strips?

✔ Metal-Like Toughness – Highest fracture toughness among oxide ceramics

✔ Precision Machining – Thickness tolerance ±0.01mm

✔ Custom Solutions – Tapered, grooved, or metallized designs

✔ Hybrid Assembly Ready – CTE-matched to stainless steel/Inconel

Technical Parameters

Production process

Certifications

Our advantage

● Certificates: ISO & SGS

● OEM & ODM: OEM & ODM service is available

● Strict testing procedures :Meeting the requirements of the product design and process, providing reliable testing data.

● Short Delivery time:If less than 1000 pieces, it only takes around 5 days. We also stock some standard-sized products, if you need urgently, we can delivery very soon.

● Best ex-factory price

● Worldwide customers

● Customized according to needs

● Continuous research and development of new products

● Customer service:If you find some quality problem, please contact us, we’ll deal with it as soon as possible.

Packaging and shipping

Our customers have a wide range of processing choices for transportation mode.

Our Main Products

Company Profie

   Yixing Shengda Refractory Ceramic Co., Ltd, established in 1995, Yixing, China with an area of 4,000 square meters and fixed assets of over 1 million US dollars, is a professional manufacturer of Steatite Ceramic Parts, Alumina Ceramic Parts, Cordierite Ceramic Parts, Ceramic Band Heater Insulators, Ceramic Terminal Block, Thermostat Ceramic Parts, Zirconia Ceramics Parts, Ceramic Heater Plugs, etc.

    Shengda Ceramic equipped with CAD/CAXA/Solidworks software to provide professional OEM & ODM service.

    Looking forward to co-operating with the customers from all over the world!
