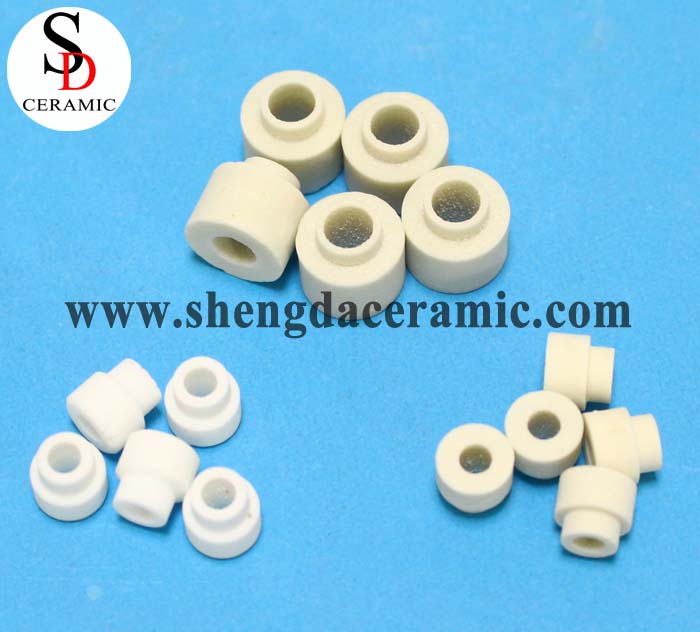

Steatite Ceramic Beads

Insulating Ceramic Beads are used to connect heating wire. It has excellent insulation performance and high temperature resistance.
Ceramic material: Steatite Ceramic and Alumina Ceramic

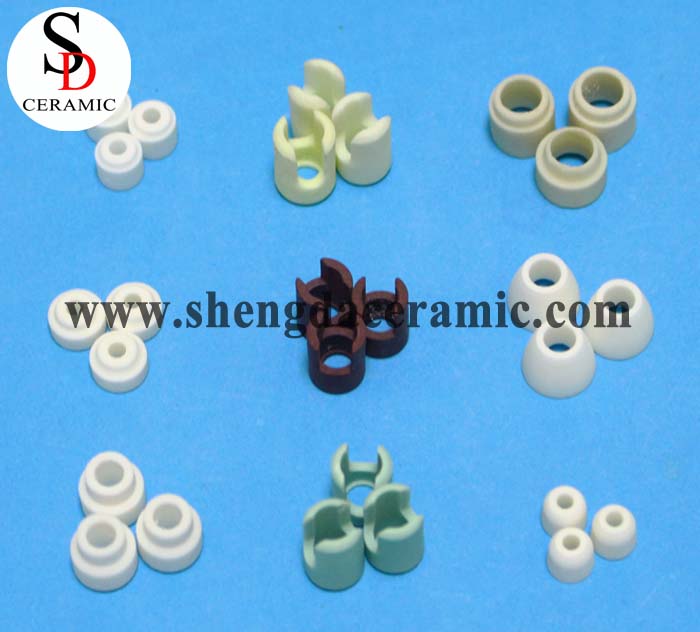

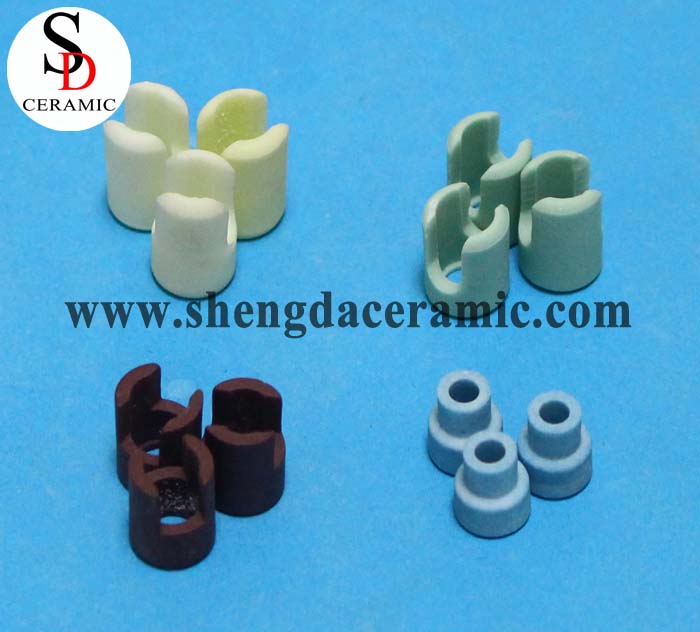

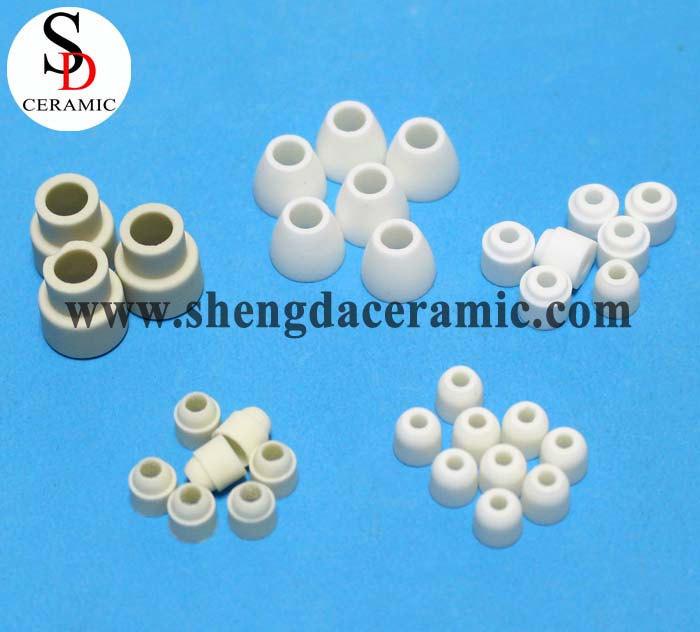

Main types:DOME type, FLAT type, etc

Product Introduction

Product description

Steatite is a low cost material with high electrical resistance at high temperatures, good mechanical strength and a very low dielectric loss factor. Such properties make it ideal for high frequency, low loss, and high voltage insulation. Moreover, steatite is an excellent material for electrical engineering as it can be readily shape sintered into a wide variety of forms such as washers, bushings, resistor forms, spaces and beads.

Steatite has been used for many years in large-scale industrial systems, household electronic appliances, aerospace and automotive applications, and specialized eletro-technical instruments such as cathode-ray tubes.

Shengda Ceramic provide all kinds of steatite ceramic tubes. Also the rings, rods, tubes, plates, inserts, bushing, sleeves, blocks, plunger and so on. Any dimension requirement, please contact us.

 Steatite Ceramic Beads

Technical Parameters

Performance

Item

Index

Unit

Steatite

95 Al2O3

99 Al2O3

Physical Characteristics

Bulk density

g/cm 3

2.7

3.6

3.6

Water absorption

%

0

0

0

Mechanical Characteristics

Flexural strength

Mpa

145

320

340

Hardness Vickers

Gpa

5.7

12.2

13.5

Elastic modulus

Gpa

120

280

320

Thermal Characteristics

Poisson's ratio

-

0.21

0.22

0.23

Expansion coefficient

10-6/℃

7.9

7.1

7.2

Thermal conductivity

w/(m . k)

2.5

16

24

Specific Heat

10-3 J/ (kg * K)

0.75

0.78

0.78

Electrical Characteristics

Dielectric constant

-

6.2

9

9.4

Dielectric loss angle

*10 -4

18

15

5

Dielectric strength

*10 6 V/m

18

12

15


Production process

High Alumina Ceramic Insulator Tube Part


Features

1) A variety of specifications available.

2) Satisfy various technical request

3) Lower medium spoilage

4) Good insulation performance and high temperature resistance

5) High strength

6) Used in all electric products, electric heating products and wear resistant machinery parts.

7) OEM, ODM and OBM are welcomed


Production equipment

High Alumina Ceramic Insulator Tube Part


Our advantage

● Certificates: ISO & SGS

● OEM & ODM: OEM & ODM service is available

● Strict testing procedures :Meeting the requirements of the product design and process, providing reliable testing data.

● Short Delivery time:If less than 1000 pieces, it only takes around 5 days. We also stock some standard-sized products, if you need urgently, we can delivery very soon.

● Best ex-factory price

● Worldwide customers

● Customized according to needs

● Continuous research and development of new products

● Customer service:If you find some quality problem, please contact us, we’ll deal with it as soon as possible.


Our certificate

High Alumina Ceramic Insulator Tube Part


Packaging and shipping

Our customers have a wide range of processing choices for transportation mode.

● By Express (FedEx, UPS, DHL, TNT, EMS, etc...)

--- Advantage: Fast ( takes about 7 - 10 days in the delivery ), door to door

--- Disadvantage: A little expensive

● By Air Transportation

--- Advantage: Fast ( takes about 8 - 12 days ), a little cheaper than Express.

--- Disadvantage: You need to take the goods from the airport by yourself.

● By Sea ( Ocean ) Transportation

--- Advantage: Much cheaper than Express or Air transportation.

--- Disadvantage: Slow and you need to take the goods from your destination port by yourself.

High Alumina Ceramic Insulator Tube Part
