Custom Electric Radiators Precision Steatite Ceramic Insulator

Shengda Ceramic provide all kinds of Custom Electric Radiators Heater Precision Steatite Ceramic Insulator

Product Introduction

Main Products

Advanced Industrial Thermal Alumina Ceramic Tubes



Product description

Custom Electric Radiators Heater Precision Steatite Ceramic Insulator

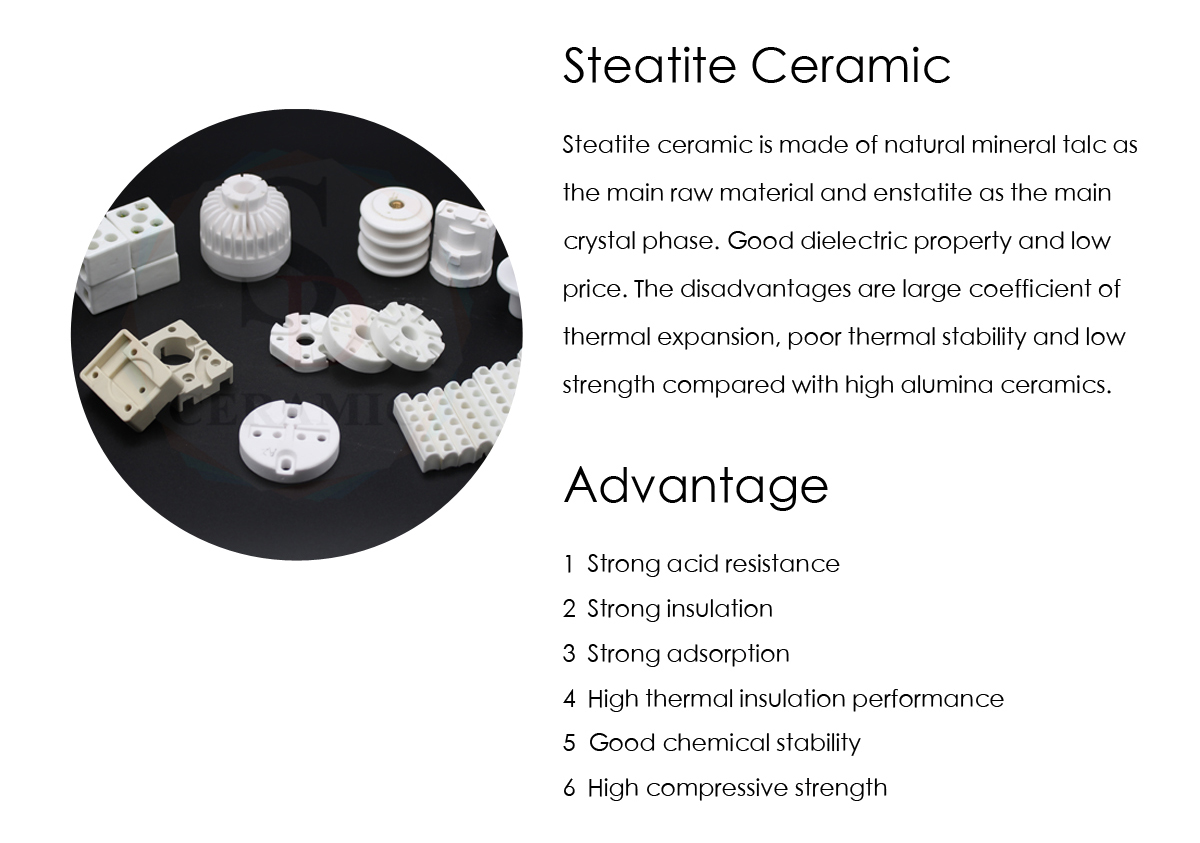

Steatite Ceramics, with MgSiO3 as the main crystal phase, is a high-frequency structural ceramics with excellent electrical properties, high temperature resistance and high cost performance, which is commonly used as insulation parts in high-frequency equipment.

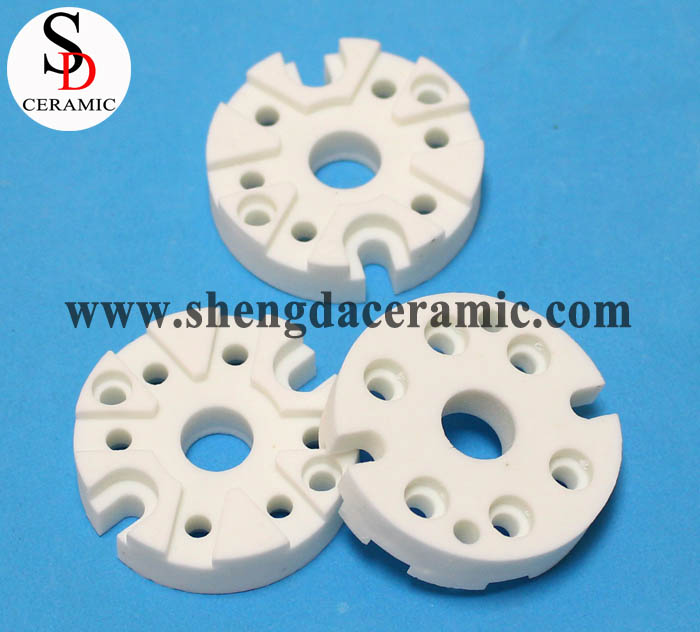

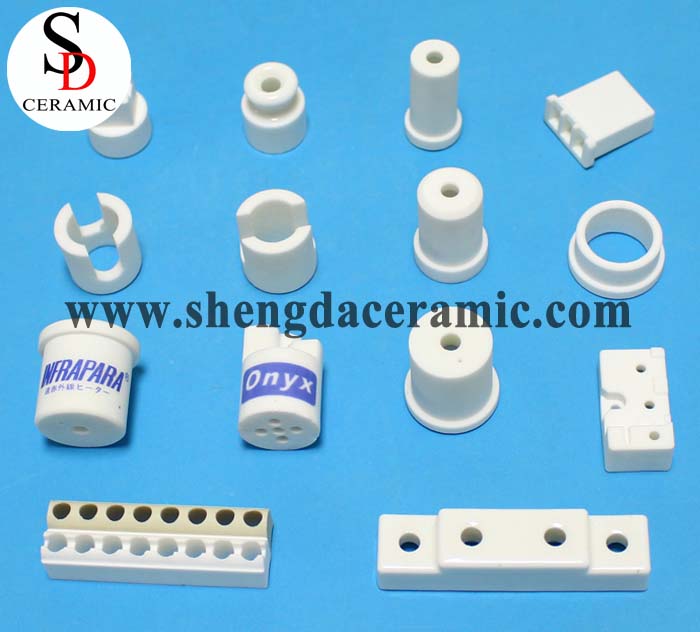

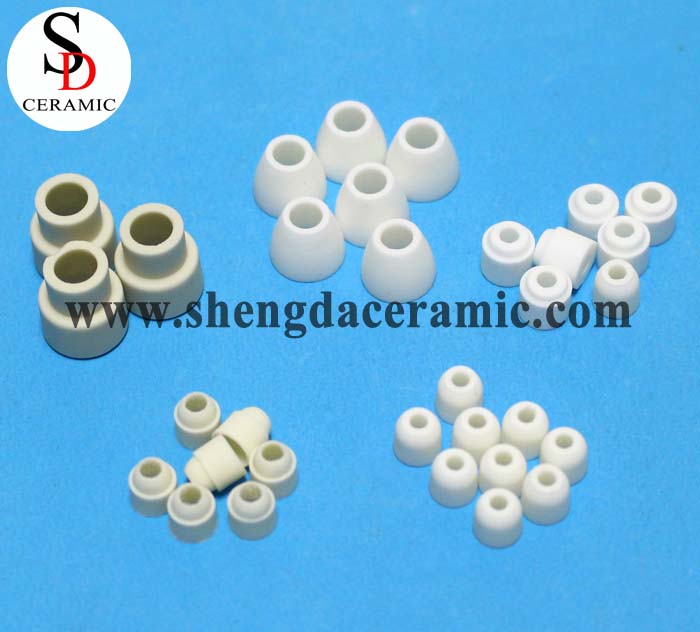

Shengda Ceramic provide all kinds of Steatite ceramic tubes, ceramic rings, ceramic rods, ceramic tubes, ceramic plates, ceramic inserts, ceramic bushing and so on. Any dimension requirement, please contact us.

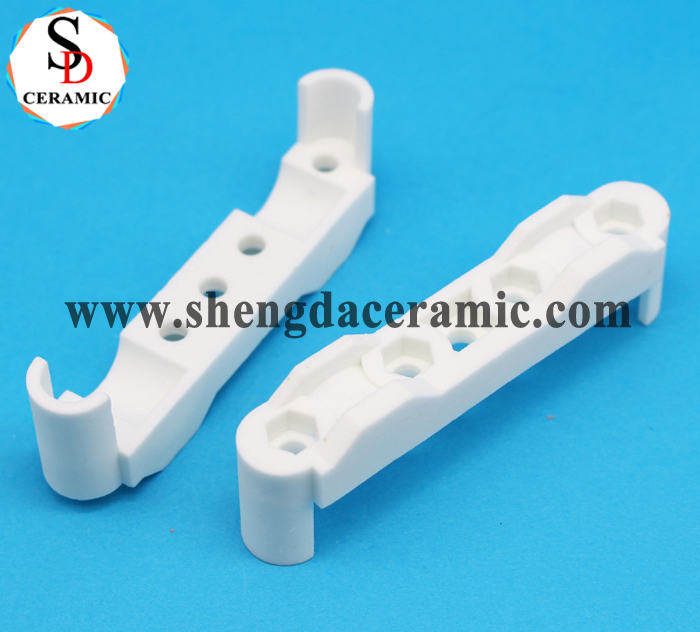

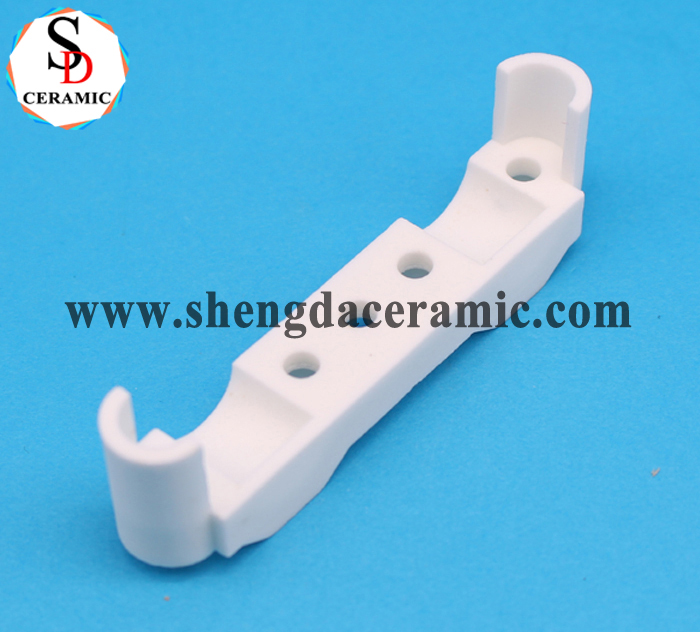

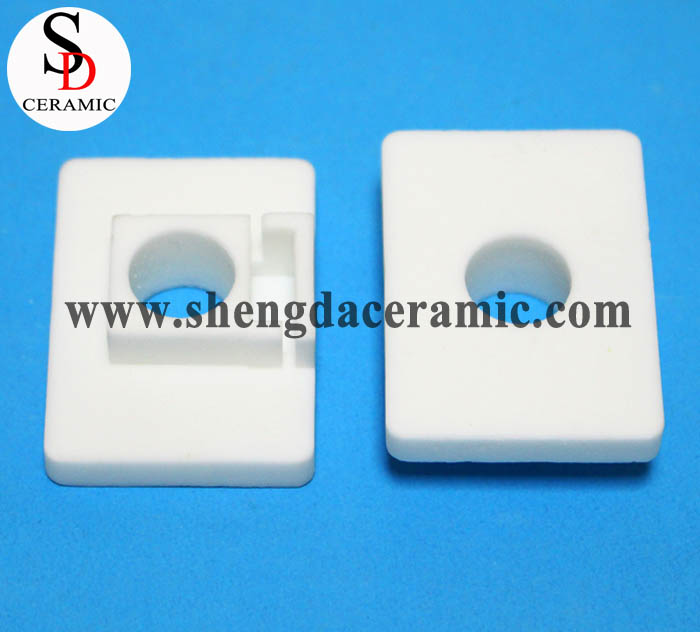

Custom Electric Radiators Precision Steatite Ceramic Insulator

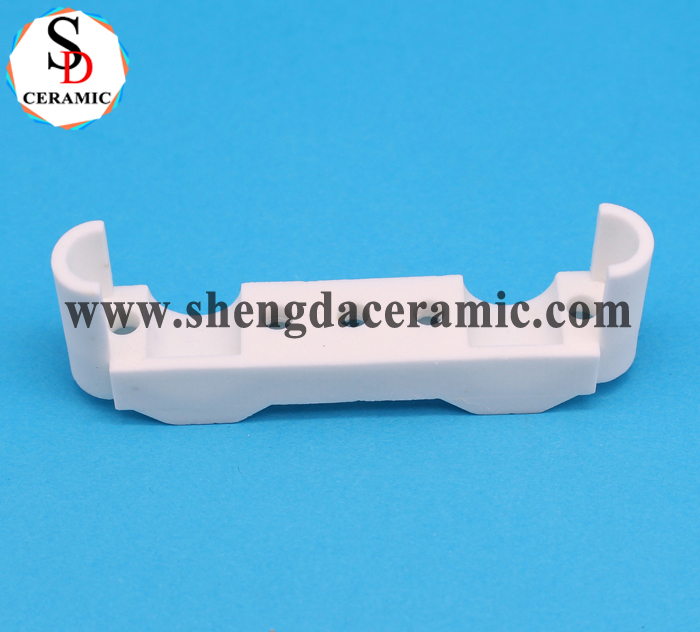

Custom Electric Radiators Precision Steatite Ceramic Insulator

Custom Electric Radiators Precision Steatite Ceramic Insulator




Technical Parameters

Custom Electric Radiators Precision Steatite Ceramic Insulator

Performance

Item

Index

Unit

Steatite

95 Al2O3

99 Al2O3

Physical Characteristics

Bulk density

g/cm 3

2.7

3.6

3.6

Water absorption

%

0

0

0

Mechanical Characteristics

Flexural strength

Mpa

145

320

340

Hardness Vickers

Gpa

5.7

12.2

13.5

Elastic modulus

Gpa

120

280

320

Thermal Characteristics

Poisson's ratio

-

0.21

0.22

0.23

Expansion coefficient

10-6/℃

7.9

7.1

7.2

Thermal conductivity

w/(m . k)

2.5

16

24

Specific Heat

10-3 J/ (kg * K)

0.75

0.78

0.78

Electrical Characteristics

Dielectric constant

-

6.2

9

9.4

Dielectric loss angle

*10 -4

18

15

5

Dielectric strength

*10 6 V/m

18

12

15


Production process

Dry Pressing

Advanced Industrial Thermal Alumina Ceramic Tubes


Hot Injection

Thermal Insulation Alumina Corundum Ceramic Ring Insulator



Features

1) A variety of specifications available.

2) Satisfy various technical request

3) Lower medium spoilage

4) Good insulation performance and high temperature resistance

5) High strength

6) Used in all electric products, electric heating products and wear resistant machinery parts.

7) OEM, ODM and OBM are welcomed


Production equipment

Advanced Industrial Thermal Alumina Ceramic Tubes


Our advantage

● Certificates: ISO & SGS

● OEM & ODM: OEM & ODM service is available

● Strict testing procedures :Meeting the requirements of the product design and process, providing reliable testing data.

● Short Delivery time:If less than 1000 pieces, it only takes around 5 days. We also stock some standard-sized products, if you need urgently, we can delivery very soon.

● Best ex-factory price

● Worldwide customers

● Customized according to needs

● Continuous research and development of new products

● Customer service:If you find some quality problem, please contact us, we’ll deal with it as soon as possible.


Our certificate

Alumina Zirconia Electrical Ceramic Plunger Parts Insulator

Packaging and shipping

Our customers have a wide range of processing choices for transportation mode.

● By Express (FedEx, UPS, DHL, TNT, EMS, etc...)

--- Advantage: Fast ( takes about 7 - 10 days in the delivery ), door to door

--- Disadvantage: A little expensive

● By Air Transportation

--- Advantage: Fast ( takes about 8 - 12 days ), a little cheaper than Express.

--- Disadvantage: You need to take the goods from the airport by yourself.

● By Sea ( Ocean ) Transportation

--- Advantage: Much cheaper than Express or Air transportation.

--- Disadvantage: Slow and you need to take the goods from your destination port by yourself.
