PRODUCT DESCRIPTION
The main chemical ingredient of Cordierite Ceramic is 2MgO·2Al2O3·5SiO2, main material is steatite, clay, alumina ,feldspar, etc. Manufactured by normal ceramic technic, can be used for loop frame work, insulators of arc-resistance ,element of composite materials ,burnable nozzle of electrical insulators, and etc.
Technical Parameter
Properities | Unit | Cordierite ceramics |
Density | g/cm3 | 2.5 |
Maximum Use Temperature | °C | 1000 |
Hardness | HV | 800 |
Bending Strength | Kgf/cm2 | 900 |
Compressive Strength | Kgf/cm2 | 3500 |
Thermal expansion rate | x 10-6/°C | ≤2.0 |
Thermal conductivity | W/m °K | 1.8-2.8 |
Thermal Shock Resistanc | °C | 250 |

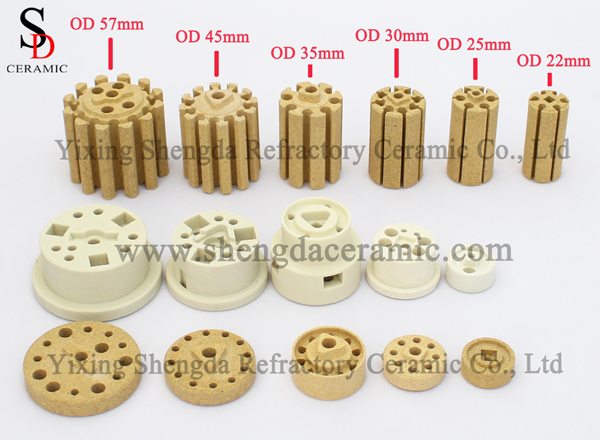

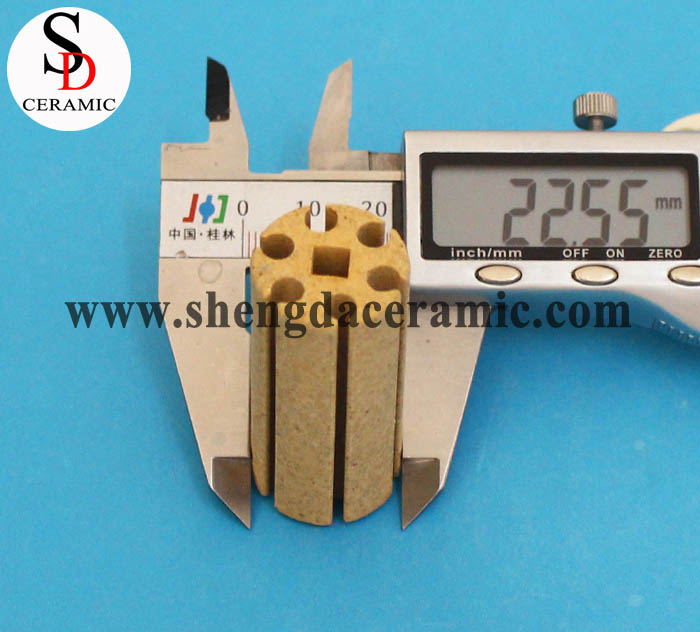

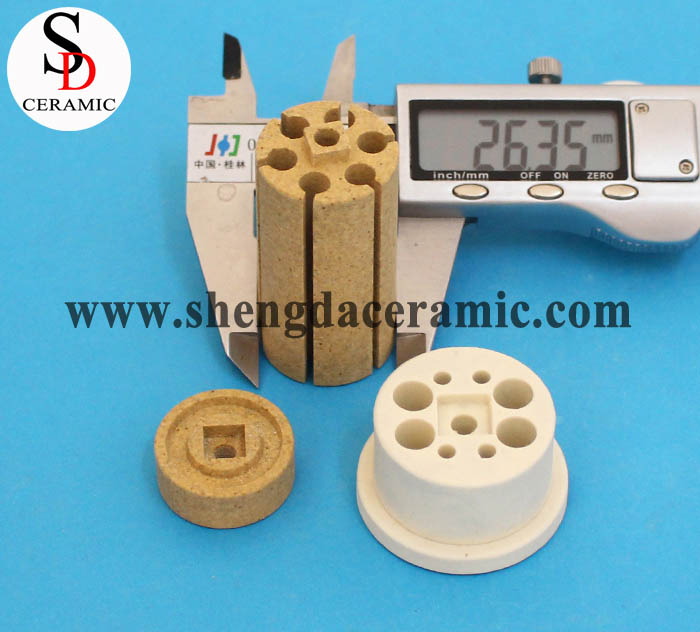

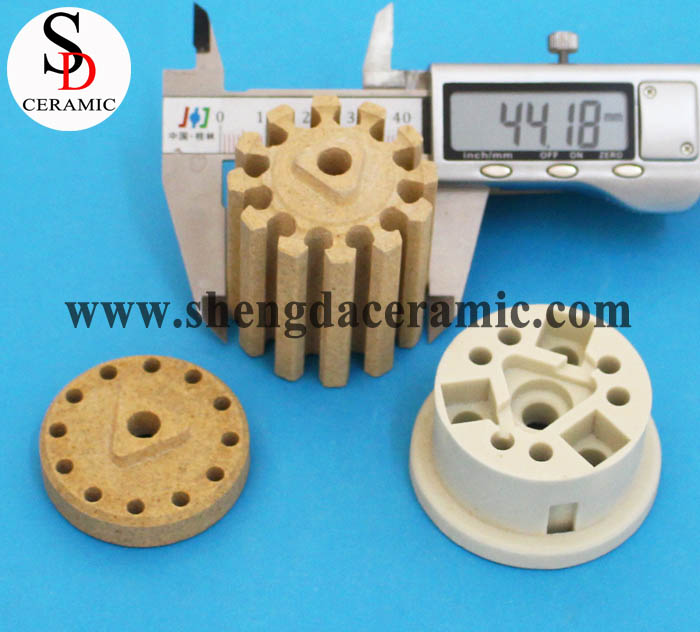

Shengda Ceramic can provide Cordierite Ceramic Bobbin in following dimension :
PRODUCTION PROCESS

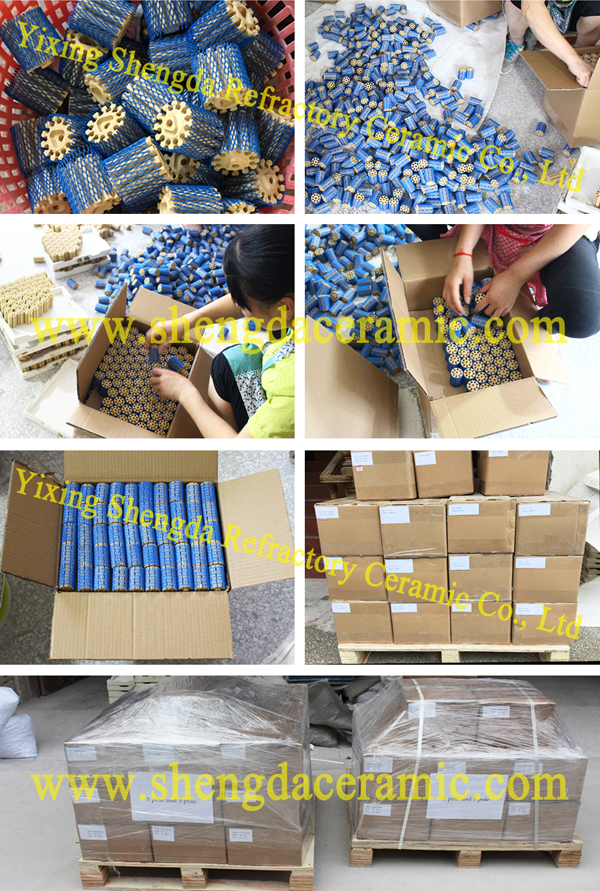

PACKAGING & SHIPPING
Quality is the most important. We always attach great importance to quality control from beginning to end. We have QC department to carry out the inspection before shipping.
Usually 18 business days. Include 10days for making furnaces and 8days for producing samples.
As a professional ceramic manufacturer with 22 Years OEM and ODM experience, we can customize ceramic part according to clients' drawings or samples.
Our main products are Steatite Ceramic Parts, Alumina Ceramic Parts, Cordierite Ceramic Parts, Ceramic Terminal Block, Textile Ceramics Parts, Ceramic Heater Plugs, etc. used in ceramic band heater, industrial heating and any special occasion that with electric insulation or heating resistance capability.
200,000 pieces per month. It usually takes 20-30 days to complete the item.
Our foreign trade business have started from 2013 year. We have exported our products to more than 10 countries such as United States,,Spain, Italy, Croatia, United Arab Emirates, Jordan, Chile, India, Vietnam, etc.
Yixing Shengda Refractory Ceramic Co., Ltd is a factory established in 1995, located in Yixing City, Jingsu Province, China.
