Cordierite Ceramic Insulator for Bobbin Heater

Cordierite Ceramic Main Features

1. Low linear expansion

2. Low thermal expansion rate

3. Low heat conductivity (Thermal insulator).

4. Excellent resistance to thermal shock

5. Good chemical stability

Product Introduction

PRODUCT DESCRIPTION

The main chemical ingredient of Cordierite Ceramic is 2MgO·2Al2O3·5SiO2, main material is steatite, clay, alumina ,feldspar, etc. Manufactured by normal ceramic technic, can be used for loop frame work, insulators of arc-resistance ,element of composite materials ,burnable nozzle of electrical insulators, and etc.

Technical Parameter

Properities

Unit

Cordierite ceramics

Density

g/cm3

2.5

Maximum Use Temperature

°C

1000

Hardness

HV800

Bending Strength

Kgf/cm2

900

Compressive Strength

Kgf/cm2

3500

Thermal expansion rate

x 10-6/°C

≤2.0

Thermal conductivity

W/m °K

1.8-2.8

Thermal Shock Resistanc

°C

250

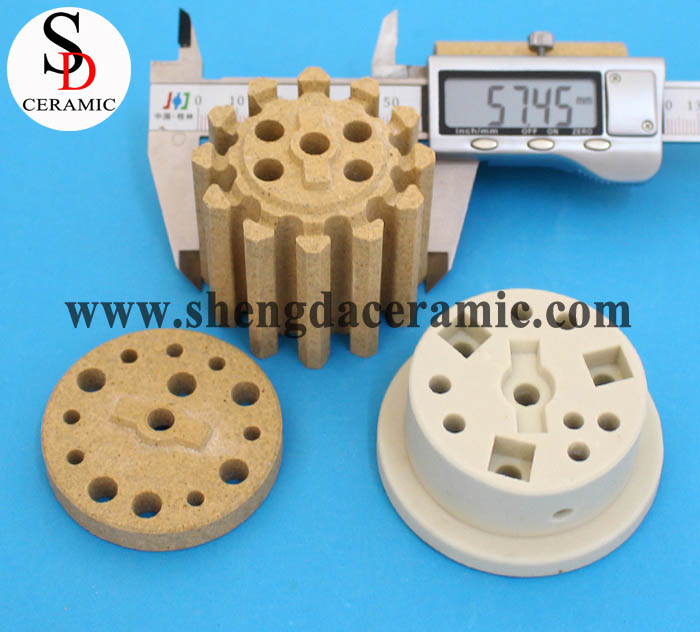

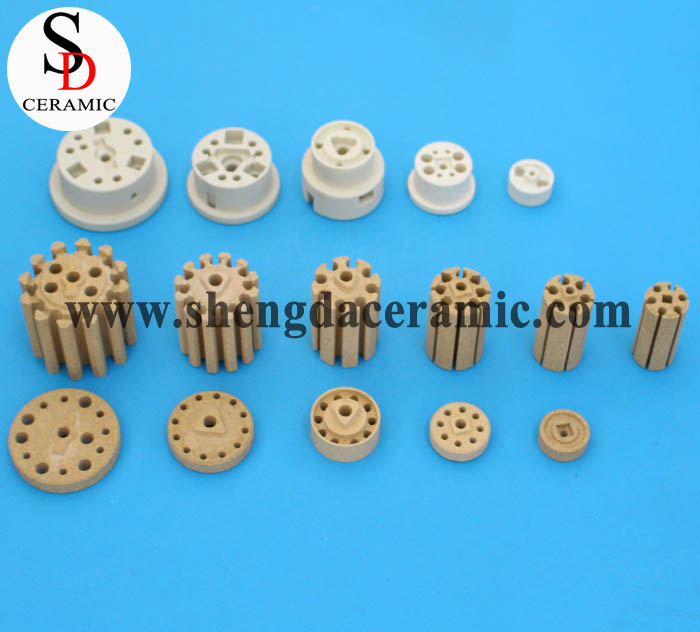

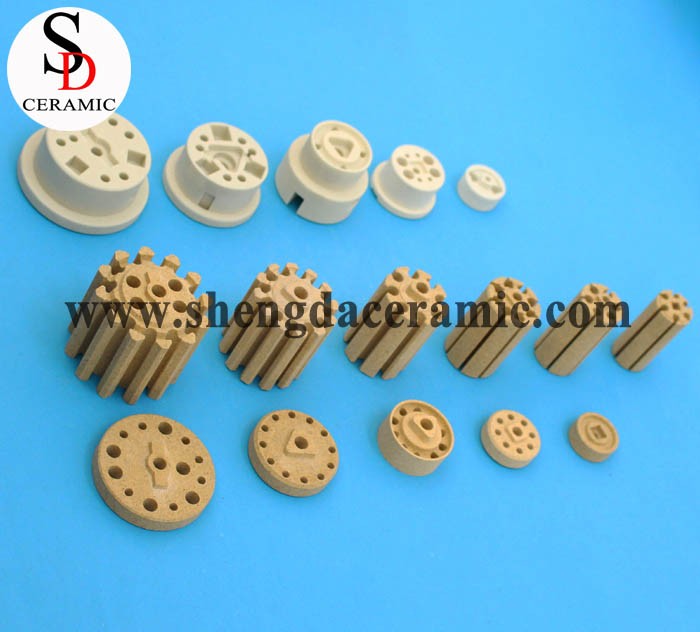

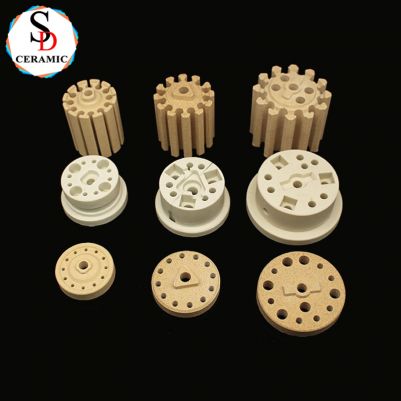

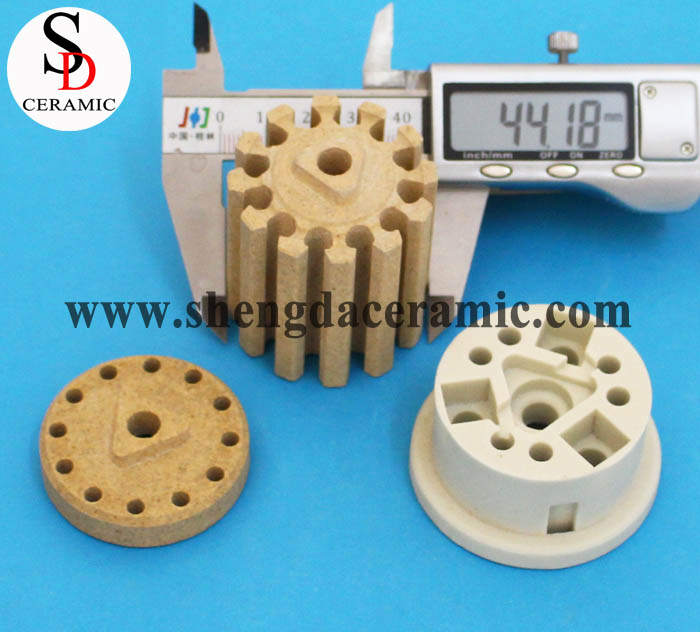

Shengda Ceramic can provide Cordierite Ceramic Bobbin in following dimension :


PRODUCTION PROCESS


PACKAGING & SHIPPING
