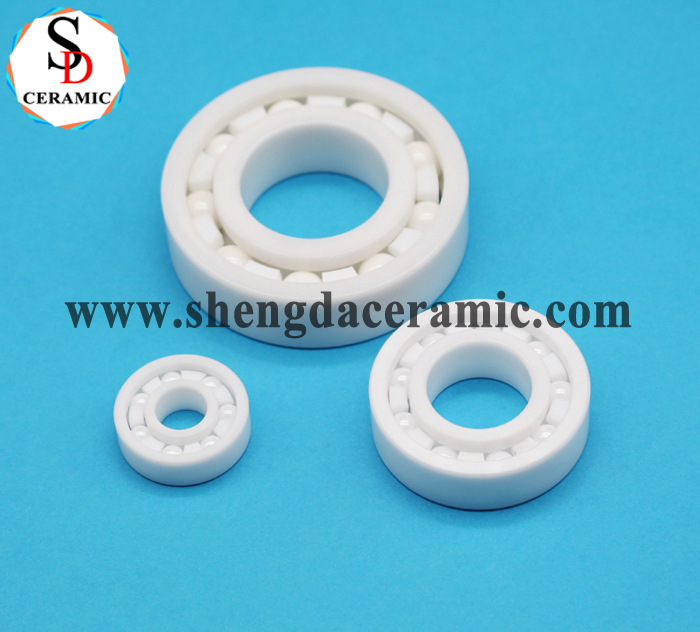

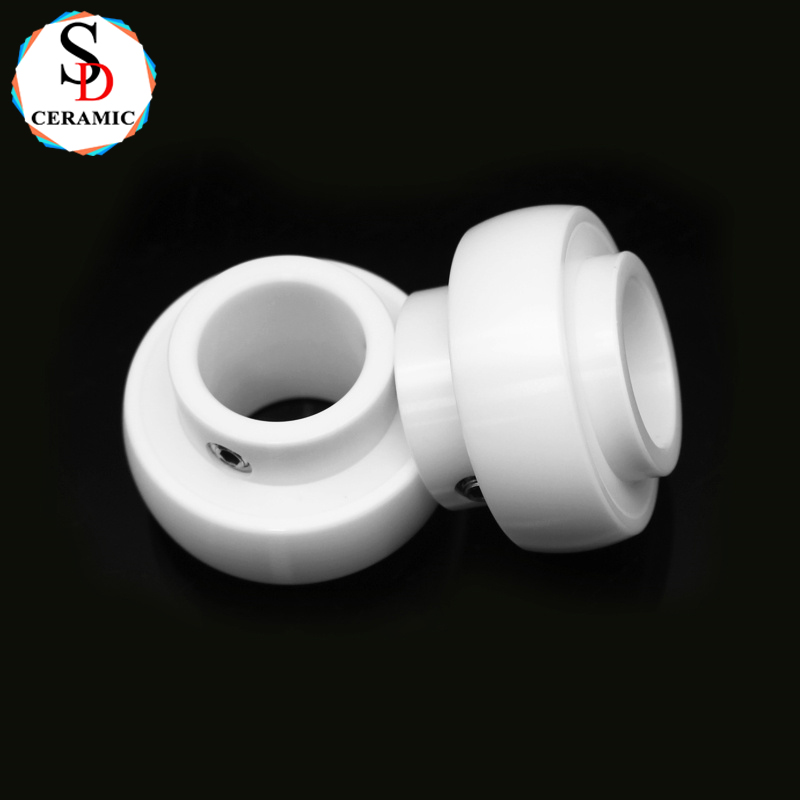

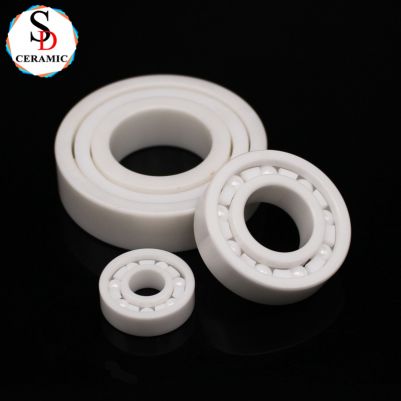

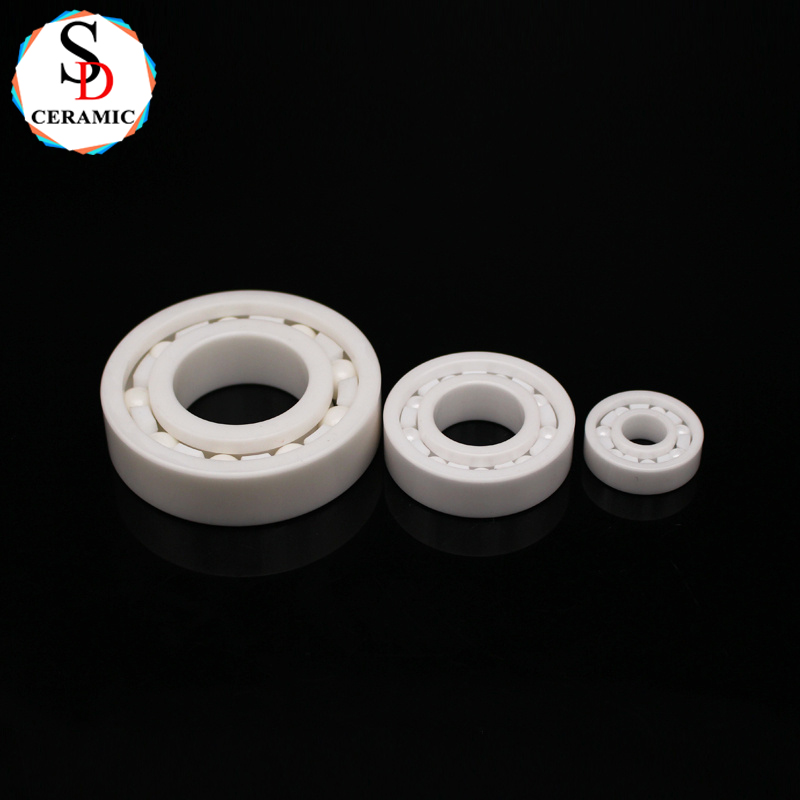

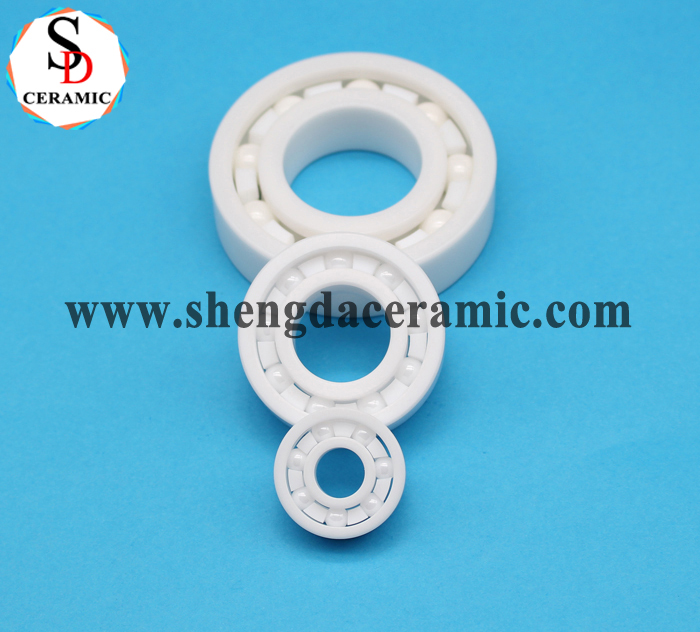

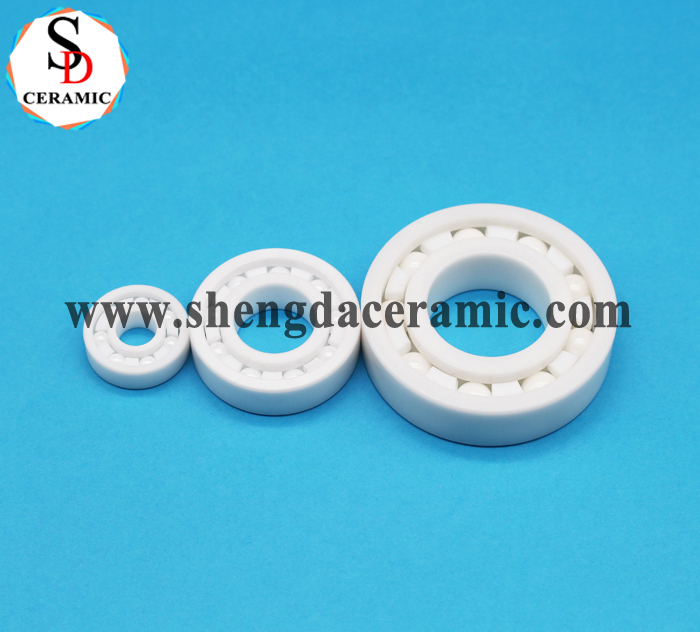

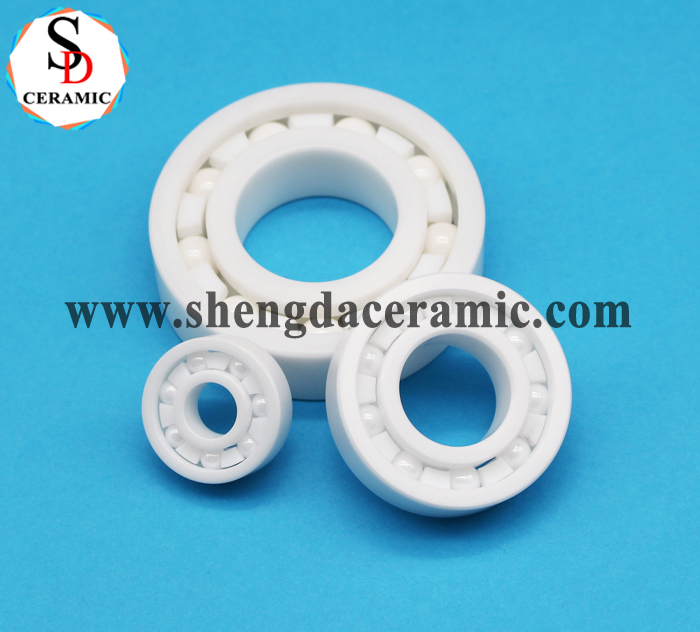

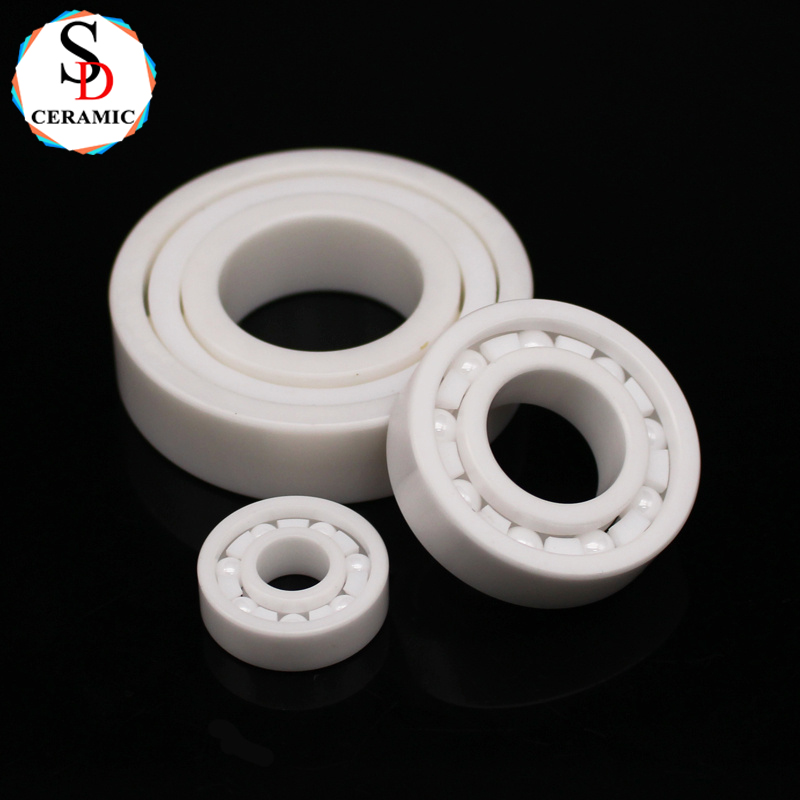

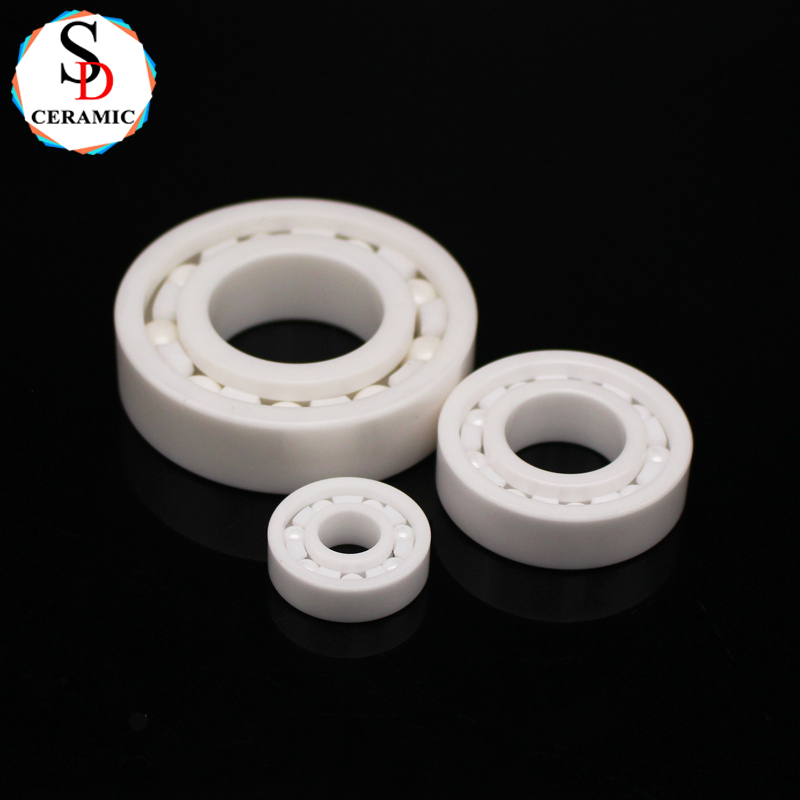

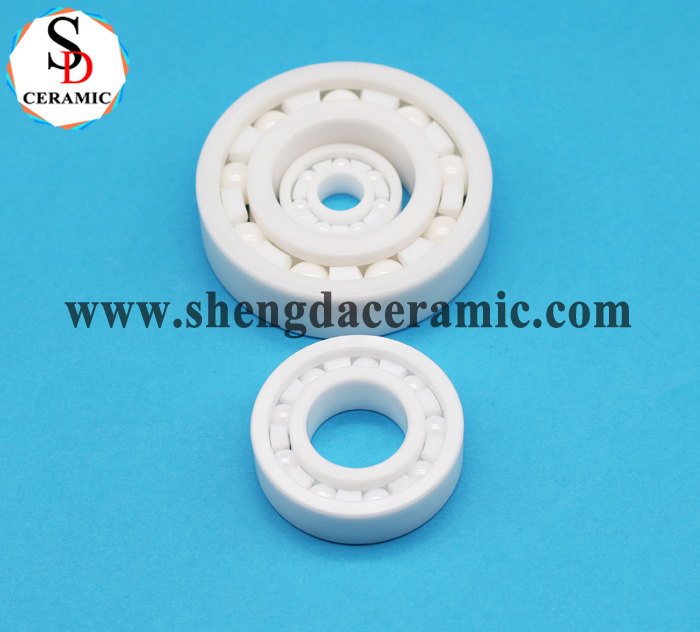

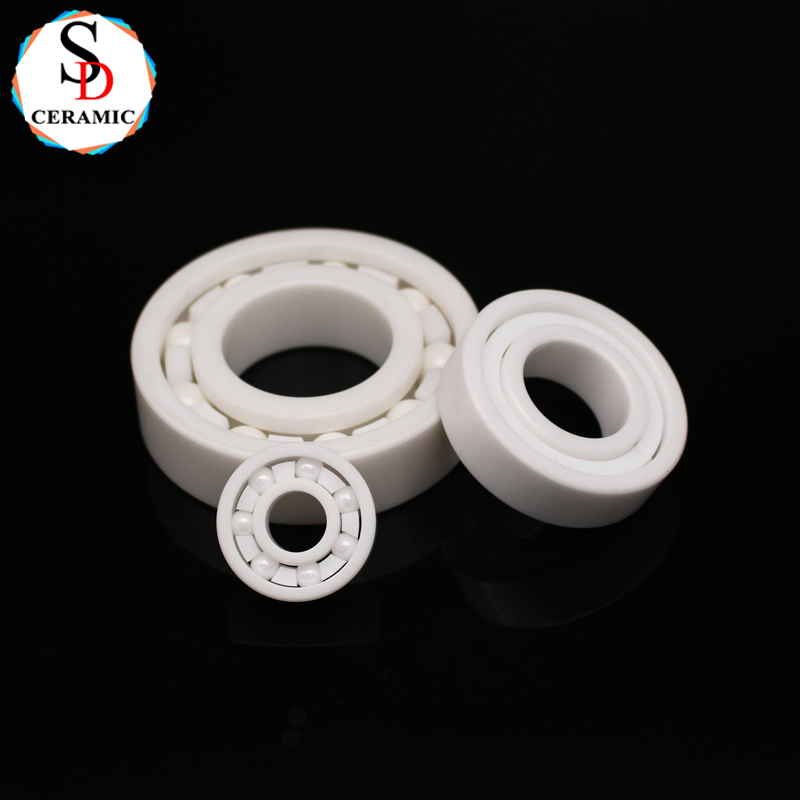

Zirconia Structural Ceramic Bearings

    Shengda Ceramic provide all kinds of Zirconia Structural Ceramic Bearings.

  • Detailed Specification
  • FAQ

    Product Description

    Zirconia Structural Ceramic Bearings


    Zirconium dioxide, whose chemical formula is ZrO2, is the main oxide of zirconium. Under normal conditions, it is a white, odorless and tasteless crystal, and it is insoluble in water, hydrochloric acid and dilute sulfuric acid. The chemical properties are inactive, and it has the properties of high melting point, high resistivity, high refractive index and low thermal expansion coefficient, making it an important high temperature resistant material, ceramic insulating material and ceramic sunscreen, and it is also the main raw material for artificial drills.






    Technical Parameters

    Properties
    Units
    Steatite Ceramic
    Cordierite Ceramic
    Mullite
    Ceramic
    95%
    Al2O3
    99%
    Al2O3
    Zirconia
    Ceramic
    Silicon
    Nitride
    Colour

    White
    Yellow
    White
    White
    Ivory
    White
    Grey
    Density
    g/cm3
    2.7
    1.9
    2.6
    3.5
    3.85
    6
    3.2
    Flexural Strength
    Mpa
    140
    30
    120
    280
    340
    1150
    600
    Compressive Strength
    MPa
    900
    350
    500
    2100
    2200
    2500
    2500
    Max Use Temperature
    °C
    1000
    1200
    1300
    1400
    1650
    1500
    1800
    Thermal Condutivity
    W(m.K)
    2~3
    1.3~1.8
    2~6
    16~28
    19~30
    2.5
    20
    Thermal Expansion Cofficient
    10-6/°C
    7 ~ 9
    1.5~3.5
    5~6
    6.5~7.5
    6~8
    8~10
    3~4
    ThermalShock Resistance
    △TC
    100
    300
    150
    140
    150
    250
    600
    Specific Heat
    J/kg.K
    850
    800
    900
    950
    950
    500
    500
    Dielectric Strength
    KV/mm
    20
    30
    12
    10
    5
    20
    Dielectric Constant
    Er
    6
    8
    9
    9
    12
    6



    Features

    1) A variety of specifications available.

    2) Satisfy various technical request

    3) Lower medium spoilage

    4) Good insulation performance and high temperature resistance

    5) High strength

    6) Used in all electric products, electric heating products and wear resistant machinery parts.

    7) OEM, ODM and OBM are welcomed


    Production process

    Precision CNC Alumina Ceramic Setter Flat Plate



    Certifications

    Precision CNC Alumina Ceramic Setter Flat Plate

    Precision CNC Alumina Ceramic Setter Flat Plate

    Our advantage

    ● Certificates: ISO & SGS

    ● OEM & ODM: OEM & ODM service is available

    ● Strict testing procedures :Meeting the requirements of the product design and process, providing reliable testing data.

    ● Short Delivery time:If less than 1000 pieces, it only takes around 5 days. We also stock some standard-sized products, if you need urgently, we can delivery very soon.

    ● Best ex-factory price

    ● Worldwide customers

    ● Customized according to needs

    ● Continuous research and development of new products

    ● Customer service:If you find some quality problem, please contact us, we’ll deal with it as soon as possible.


    Packaging and shipping


    Precision CNC Alumina Ceramic Setter Flat Plate

    Our customers have a wide range of processing choices for transportation mode.

    Precision CNC Alumina Ceramic Setter Flat Plate


    Our Main Products

    Precision CNC Alumina Ceramic Setter Flat Plate


    Company Profie


    Zirconia Ceramic Screw Nuts


       Yixing Shengda Refractory Ceramic Co., Ltd, established in 1995, Yixing, China with an area of 4,000 square meters and fixed assets of over 1 million US dollars, is a professional manufacturer of Steatite Ceramic Parts, Alumina Ceramic Parts, Cordierite Ceramic Parts, Ceramic Band Heater Insulators, Ceramic Terminal Block, Thermostat Ceramic Parts, Zirconia Ceramics Parts, Ceramic Heater Plugs, etc.

        Shengda Ceramic equipped with CAD/CAXA/Solidworks software to provide professional OEM & ODM service.

        Looking forward to co-operating with the customers from all over the world!
