What Is Engineering Ceramic Material

What is engineering ceramic material?

 Engineering ceramics, also known as advanced ceramics, technical ceramics, or high-performance ceramics, are a type of precision ceramics made from high-purity inorganic non-metallic materials such as oxides, nitrides, carbides, or borides. Engineering ceramics have excellent characteristics such as high hardness, high strength, high temperature resistance, wear resistance, and corrosion resistance, but at the same time, they have high brittleness and low tensile strength. They can maintain stability in extreme environments, with a temperature tolerance range typically reaching 1000 ° C to 2000 ° C (1800 ° F to 3600 ° F), and can be used for a long time in strong acids, alkalis, or corrosive media.

Why use engineering ceramic materials?

 There are various types of engineering ceramics, and their different chemical compositions and microstructures endow them with diverse properties. Due to its excellent mechanical strength, heat resistance, chemical stability, and electrical properties, engineering ceramics are widely used in fields such as aerospace, energy, electronics, medical, military, automotive, and mechanical manufacturing. Whether as structural components or functional materials, engineering ceramics can provide performance advantages that metals and polymers cannot match under extreme conditions.

With its excellent high temperature resistance, wear resistance, and electrical insulation properties, engineering ceramics are gradually replacing traditional metals, plastics, and refractory materials. By adjusting the material formula and preparation process, its performance can be optimized to meet the requirements of different harsh working conditions. Reasonable selection of engineering ceramics can not only prolong equipment life and improve operational efficiency, but also reduce maintenance costs and enhance product reliability.

Core characteristics of engineering ceramics:

1. Extremely high hardness and wear resistance

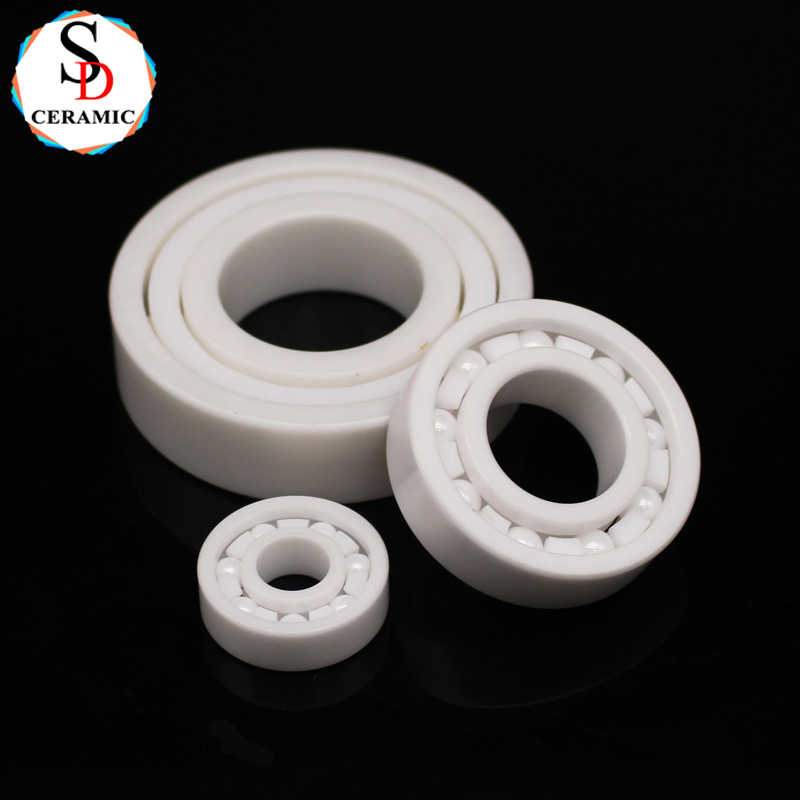

The hardness of engineering ceramics far exceeds that of most metals, and the hardness of some ceramics can reach more than 5 times that of stainless steel. This characteristic makes it perform well in environments with severe friction and wear, such as bearings, cutting tools, and seals.

2. Excellent compressive strength

The compressive strength of engineering ceramics is usually between 1000 MPa and 5000 MPa, much higher than that of titanium alloys (about 1000 MPa) and high-strength steel. This gives them significant advantages in situations where they can withstand high loads, such as mechanical structural components and bulletproof armor.

3. Lightweight characteristics

Engineering ceramics have a lower density (2-6 g/cm ³) and are lighter than stainless steel (8 g/cm ³) and titanium alloys (4.5 g/cm ³). Combined with its high strength, engineering ceramics have become an ideal choice for lightweight design in aerospace and automotive industries.

4. Excellent high temperature resistance performance

Engineering ceramics can maintain stable performance at extremely high temperatures, and some materials can even work in environments above 2000 ° C. This characteristic makes it an irreplaceable material for high-temperature applications such as gas turbines, rocket nozzles, and high-temperature furnace linings.

5. Excellent electrical performance

Engineering ceramics have characteristics such as high dielectric strength and low dielectric loss, and are suitable for electronic insulators, capacitors, semiconductor devices, etc. Some ceramics also have piezoelectric, thermoelectric, or superconducting properties, which are widely used in sensors and energy conversion fields.

6. Chemical inertness and corrosion resistance

Engineering ceramics have strong resistance to acids, bases, salts, and organic solvents, and will not undergo oxidation or electrochemical corrosion like metals. Therefore, they have a wide range of applications in fields such as chemical, medical, and marine engineering.

Limitations of engineering ceramics:

1. High processing difficulty

Due to the extremely high hardness after sintering, engineering ceramics are difficult to undergo conventional mechanical processing and usually require special processes such as diamond grinding or laser cutting, resulting in high manufacturing costs. However, some machinable ceramics, such as silicon nitride and zirconia, can be cut using traditional methods, improving design flexibility.

2. High brittleness

The atomic bonds of engineering ceramics are mainly ionic and covalent bonds, lacking the ductility of metallic materials, and are prone to brittle fracture when subjected to impact or stress concentration. Therefore, it is necessary to optimize the structural design during application to avoid stress concentration.

3. The performance is significantly affected by the process

The performance of engineering ceramics is highly dependent on the purity of raw materials and sintering processes. Even for ceramics with the same composition, slight differences in preparation processes may lead to performance fluctuations. Therefore, strict quality control and standardized production are crucial.

Conclusion

Engineering ceramics, with their unique combination of properties, are driving technological innovation in modern industry. Despite challenges such as processing and brittleness, with the advancement of materials science and manufacturing technology, the application scope of engineering ceramics will continue to expand, providing more possibilities for high-end manufacturing and extreme environmental applications.
