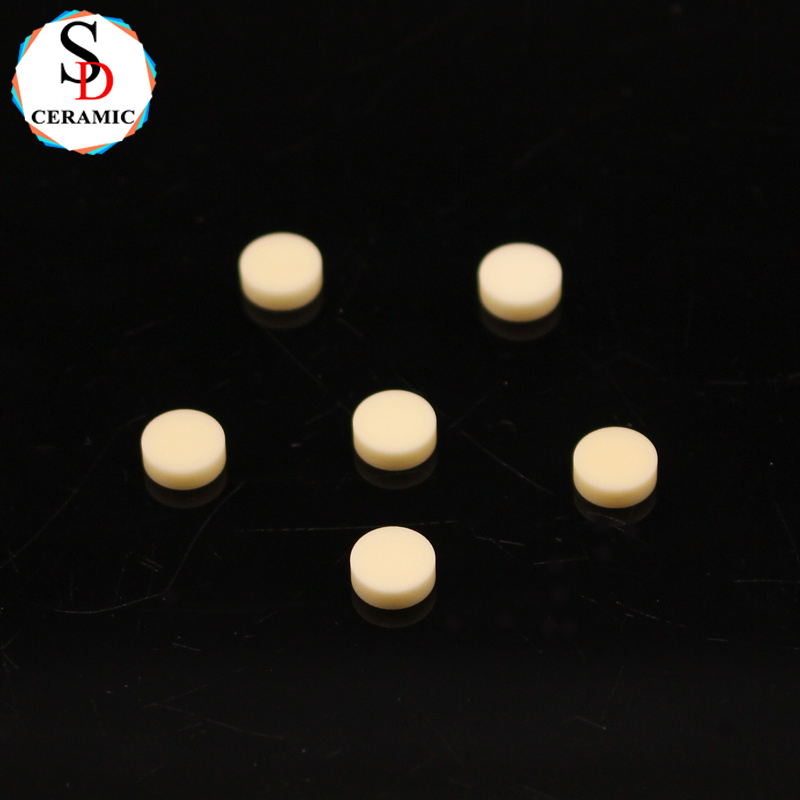

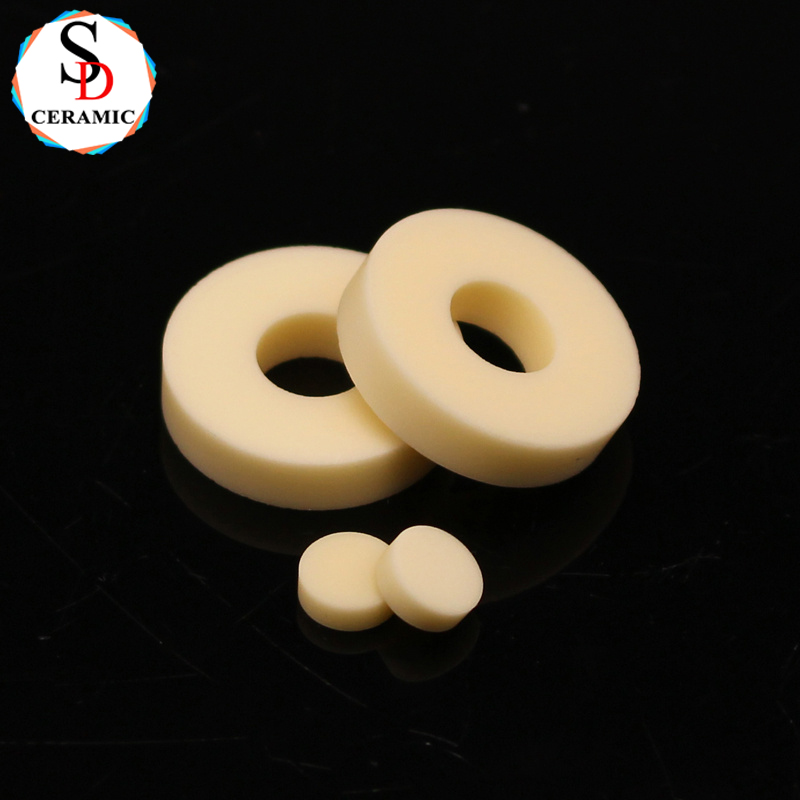

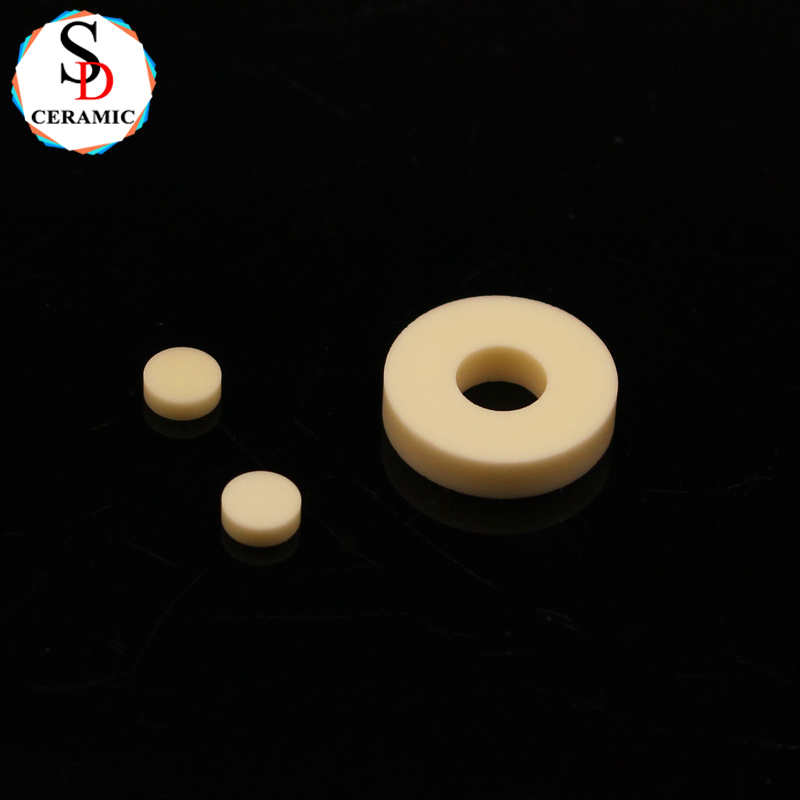

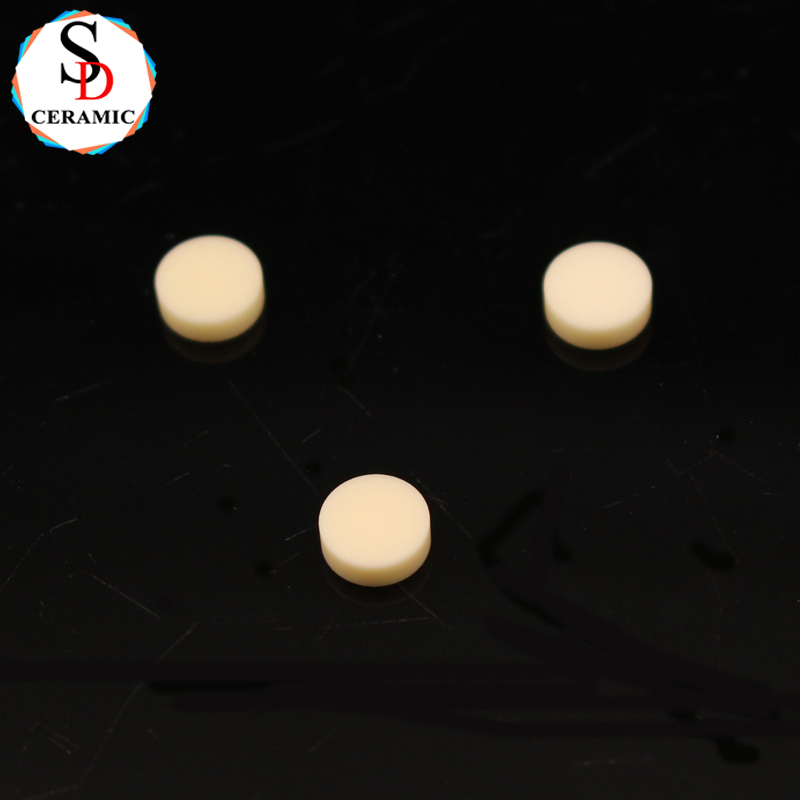

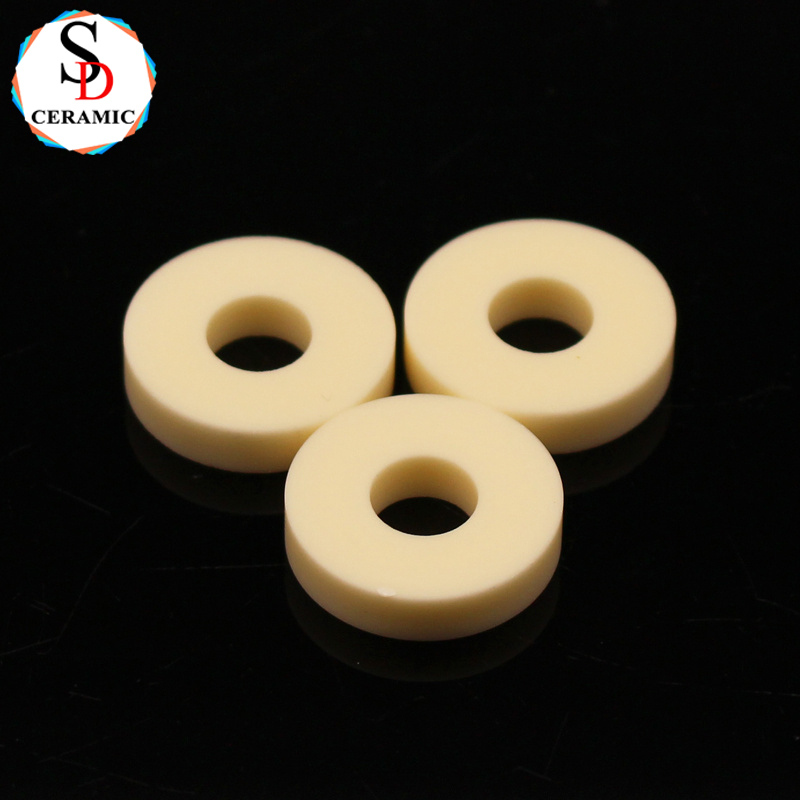

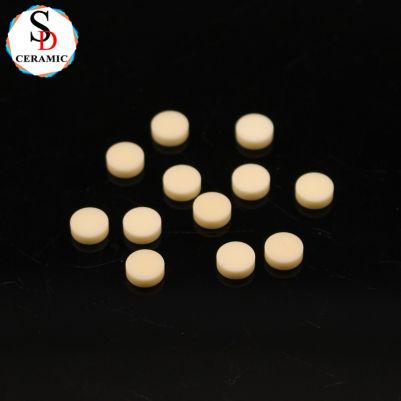

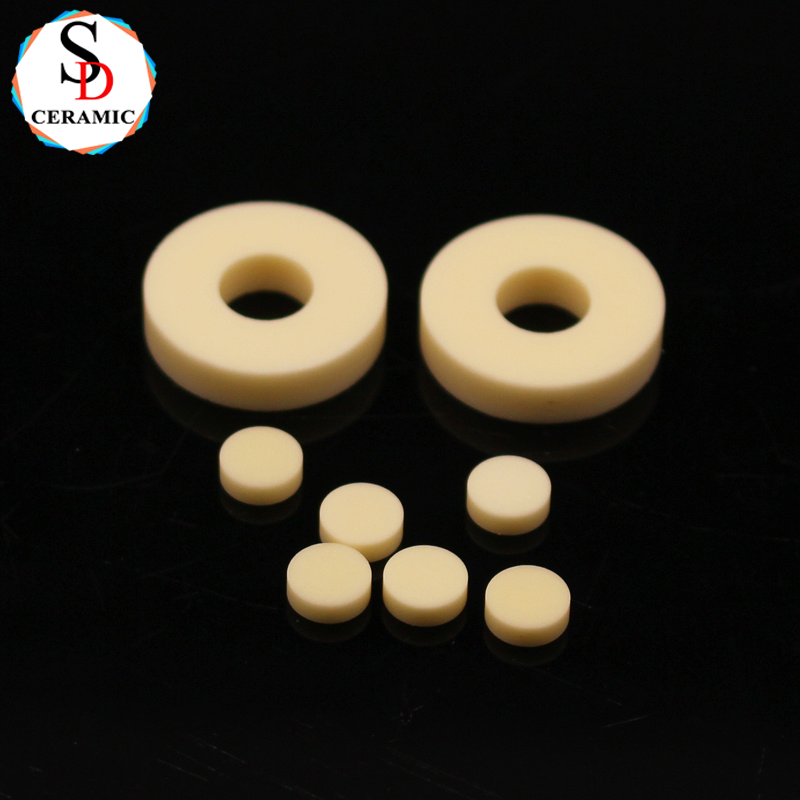

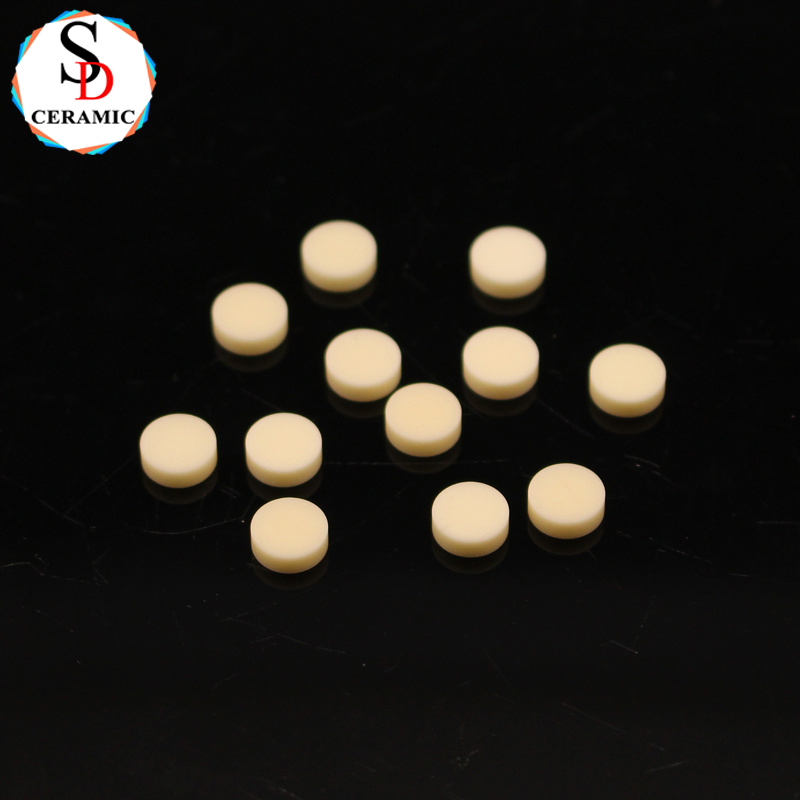

Small Size High Thermal Conductivity 99 Alumina Al2o3 Ceramic Wafer Disc Sheet for Industrial

Shengda Ceramic provide all kinds of Alumina Ceramic Engineering Ceramic Thin Substrate/Sheet/Plate/Board.

Product Introduction

Product Overview

Our 99% alumina ceramic wafers, discs and sheets represent the gold standard in high-performance ceramic substrates, combining outstanding thermal conductivity (30W/mK) with superior electrical insulation and mechanical strength. These precision-engineered components are ideal for demanding applications in semiconductor, laser, power electronics and industrial equipment where thermal management is critical.


Key Features & Benefits

✔ Industry-Leading Thermal Conductivity - 30W/mK for efficient heat dissipation

✔ Ultra-High Purity - 99% Al₂O₃ composition for consistent performance

✔ Precision Thinness - Available from 0.1mm to 5mm thickness

✔ Exceptional Flatness - Surface finish down to Ra 0.1μm

✔ High Dielectric Strength - >10kV/mm electrical insulation


Critical Industrial Applications

1. Semiconductor & Microelectronics

Wafer processing carriers for IC manufacturing

Laser diode submounts with precise thermal management

Power electronics substrates for IGBT modules

2. LED & Optoelectronics

COB LED ceramic substrates for high-power lighting

Laser cavity components requiring thermal stability

Optical communication device bases

3. Industrial Equipment

Heater plates for industrial furnaces

Thermal break discs in high-temp machinery

Sensor mounting substrates for harsh environments

4. Medical & Scientific Instruments

X-ray tube components requiring electrical insulation

Laboratory equipment substrates for precise measurements

Medical laser system parts

5. Automotive Electronics

Power module substrates for EV inverters

Sensor mounting plates in engine compartments

LED headlight circuit bases


Small Size High Thermal Conductivity 99 Alumina Al2o3 Ceramic Wafer Disc Sheet for Industrial


Small Size High Thermal Conductivity 99 Alumina Al2o3 Ceramic Wafer Disc Sheet for Industrial

Competitive Advantages

✅ Superior Thermal Performance - 30W/mK conductivity outperforms competitors

Precision Manufacturing - Advanced grinding/polishing technology

Material Expertise - 15+ years in high-performance ceramics

Quality Assurance - 100% inspection for critical dimensions

Fast Turnaround - Prototypes in 5 days, production in 2 weeks

Technical Parameters

Properties
Units
Steatite Ceramic
Cordierite Ceramic
Mullite
Ceramic
95%
Al2O3
99%
Al2O3
Zirconia
Ceramic
Silicon
Nitride
Colour

White
Yellow
White
White
Ivory
White
Grey
Density
g/cm3
2.7
1.9
2.6
3.5
3.85
6
3.2
Flexural Strength
Mpa
140
30
120
280
340
1150
600
Compressive Strength
MPa
900
350
500
2100
2200
2500
2500
Max Use Temperature
°C
1000
1200
1300
1400
1650
1500
1800
Thermal Condutivity
W(m.K)
2~3
1.3~1.8
2~6
16~28
19~30
2.5
20
Thermal Expansion Cofficient
10-6/°C
7 ~ 9
1.5~3.5
5~6
6.5~7.5
6~8
8~10
3~4
ThermalShock Resistance
△TC
100
300
150
140
150
250
600
Specific Heat
J/kg.K
850
800
900
950
950
500
500
Dielectric Strength
KV/mm
20
30
12
10
5
20
Dielectric Constant
Er
6
8
9
9
12
6

Production process

Precision CNC Alumina Ceramic Setter Flat Plate


Certifications

Precision CNC Alumina Ceramic Setter Flat Plate

Precision CNC Alumina Ceramic Setter Flat Plate

Our advantage

● Certificates: ISO & SGS

● OEM & ODM: OEM & ODM service is available

● Strict testing procedures :Meeting the requirements of the product design and process, providing reliable testing data.

● Short Delivery time:If less than 1000 pieces, it only takes around 5 days. We also stock some standard-sized products, if you need urgently, we can delivery very soon.

● Best ex-factory price

● Worldwide customers

● Customized according to needs

● Continuous research and development of new products

● Customer service:If you find some quality problem, please contact us, we’ll deal with it as soon as possible.


Packaging and shipping


Precision CNC Alumina Ceramic Setter Flat Plate

Our customers have a wide range of processing choices for transportation mode.

Precision CNC Alumina Ceramic Setter Flat Plate
