Home > Products > Alumina Ceramics > 99% Alumina Ceramics
Custom High Heat Resistant 99% Alumina Ceramic PartsCustom High Heat Resistant 99% Alumina Ceramic PartsCustom High Heat Resistant 99% Alumina Ceramic PartsCustom High Heat Resistant 99% Alumina Ceramic Parts

Custom High Heat Resistant 99% Alumina Ceramic Parts

    Shengda Ceramic provide all kinds of Custom High Heat Resistant 99% Alumina Ceramic Parts

  • Detailed Specification
  • FAQ

    Product description

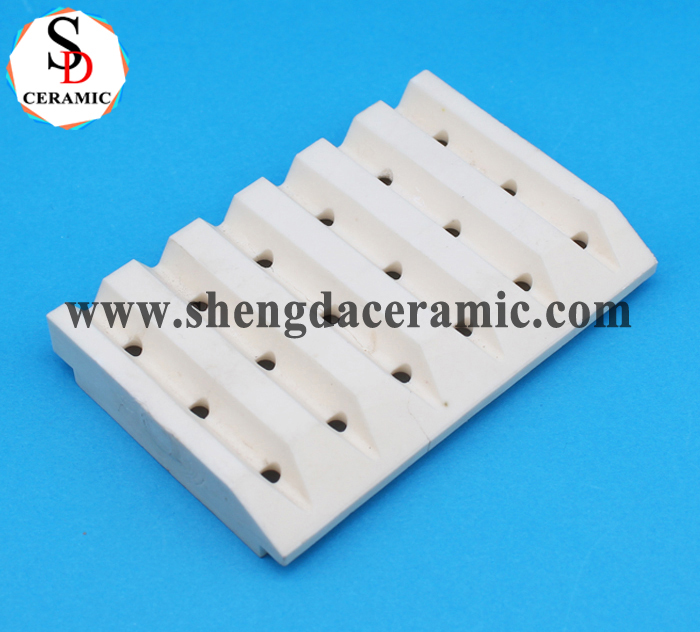

    Custom High Heat Resistant 99% Alumina Ceramic Parts

    Alumina Ceramic have a high melting point, high hardness,although mechanical strength is reduced at temperatures above 1000 C. Due to the relatively large coefficient of thermal expansion, thermal shock resistance is reduced. So it is widely used for many mechanical parts which request very high temperature.

    Shengda Ceramic provide all kinds of 2, 4, 6 holes alumina ceramic tubes. Also the rings, rods, tubes, plates, inserts, bushing, sleeves, blocks, plunger and so on. Any dimension requirement, please contact us.

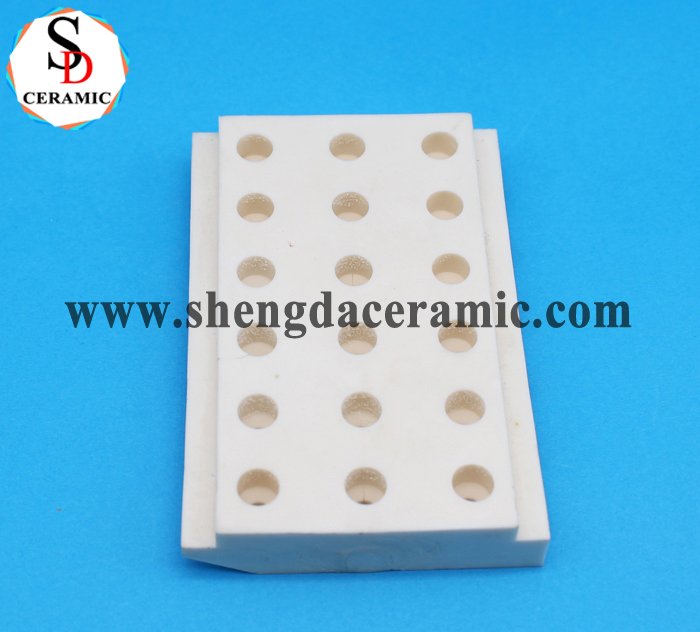

    Custom High Heat Resistant 99% Alumina Ceramic Parts

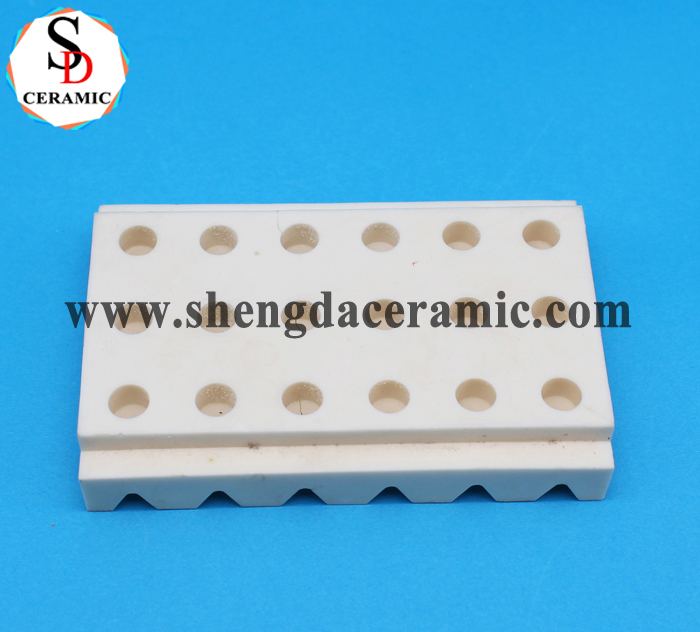

    Custom High Heat Resistant 99% Alumina Ceramic Parts

    Custom High Heat Resistant 99% Alumina Ceramic Parts



    Technical Parameters

    Performance

    Item

    Index

    Unit

    Steatite

    95 Al2O3

    99 Al2O3

    Physical Characteristics

    Bulk density

    g/cm 3

    2.7

    3.6

    3.6

    Water absorption

    %

    0

    0

    0

    Mechanical Characteristics

    Flexural strength

    Mpa

    145

    320

    340

    Hardness Vickers

    Gpa

    5.7

    12.2

    13.5

    Elastic modulus

    Gpa

    120

    280

    320

    Thermal Characteristics

    Poisson's ratio

    -

    0.21

    0.22

    0.23

    Expansion coefficient

    10-6/℃

    7.9

    7.1

    7.2

    Thermal conductivity

    w/(m . k)

    2.5

    16

    24

    Specific Heat

    10-3 J/ (kg * K)

    0.75

    0.78

    0.78

    Electrical Characteristics

    Dielectric constant

    -

    6.2

    9

    9.4

    Dielectric loss angle

    *10 -4

    18

    15

    5

    Dielectric strength

    *10 6 V/m

    18

    12

    15


    Production process

    Custom High Heat Resistant 99% Alumina Ceramic Parts


    Features

    1) A variety of specifications available.

    2) Satisfy various technical request

    3) Lower medium spoilage

    4) Good insulation performance and high temperature resistance

    5) High strength

    6) Used in all electric products, electric heating products and wear resistant machinery parts.

    7) OEM, ODM and OBM are welcomed


    Production equipment

    Alumina Zirconia Electrical Ceramic Plunger Parts Insulator


    Our advantage

    ● Certificates: ISO & SGS

    ● OEM & ODM: OEM & ODM service is available

    ● Strict testing procedures :Meeting the requirements of the product design and process, providing reliable testing data.

    ● Short Delivery time:If less than 1000 pieces, it only takes around 5 days. We also stock some standard-sized products, if you need urgently, we can delivery very soon.

    ● Best ex-factory price

    ● Worldwide customers

    ● Customized according to needs

    ● Continuous research and development of new products

    ● Customer service:If you find some quality problem, please contact us, we’ll deal with it as soon as possible.


    Our certificate

    Alumina Zirconia Electrical Ceramic Plunger Parts Insulator


    Packaging and shipping

    Our customers have a wide range of processing choices for transportation mode.

    ● By Express (FedEx, UPS, DHL, TNT, EMS, etc...)

    --- Advantage: Fast ( takes about 7 - 10 days in the delivery ), door to door

    --- Disadvantage: A little expensive

    ● By Air Transportation

    --- Advantage: Fast ( takes about 8 - 12 days ), a little cheaper than Express.

    --- Disadvantage: You need to take the goods from the airport by yourself.

    ● By Sea ( Ocean ) Transportation

    --- Advantage: Much cheaper than Express or Air transportation.

    --- Disadvantage: Slow and you need to take the goods from your destination port by yourself.

    Custom High Heat Resistant 99% Alumina Ceramic Parts
