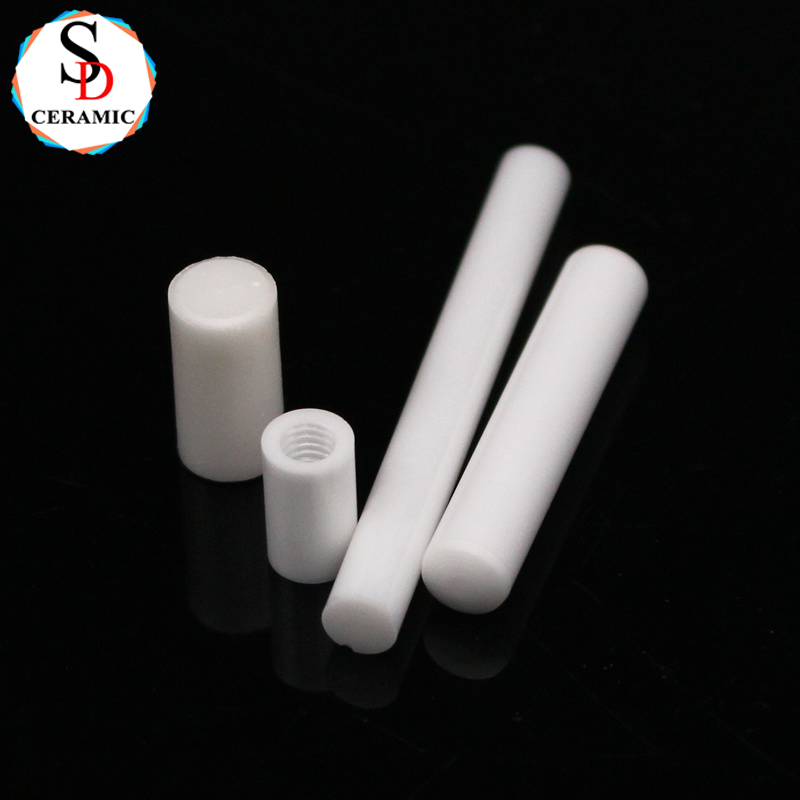

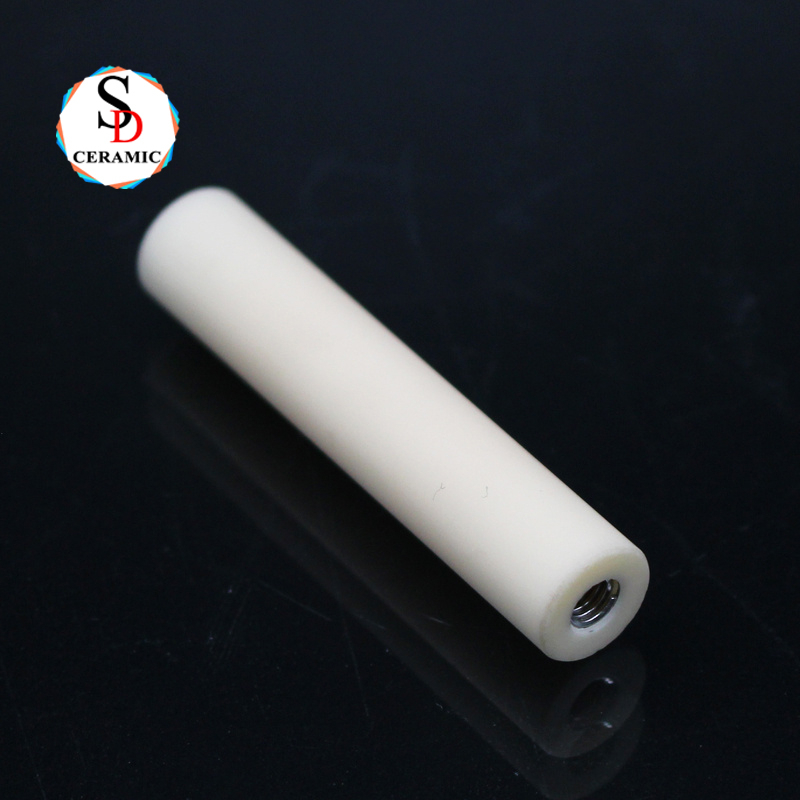

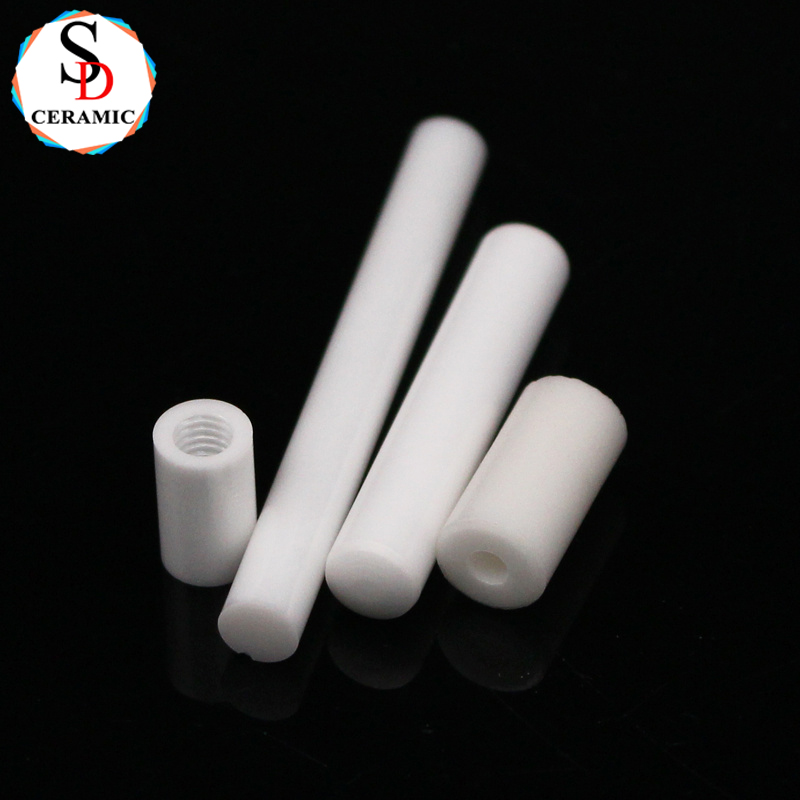

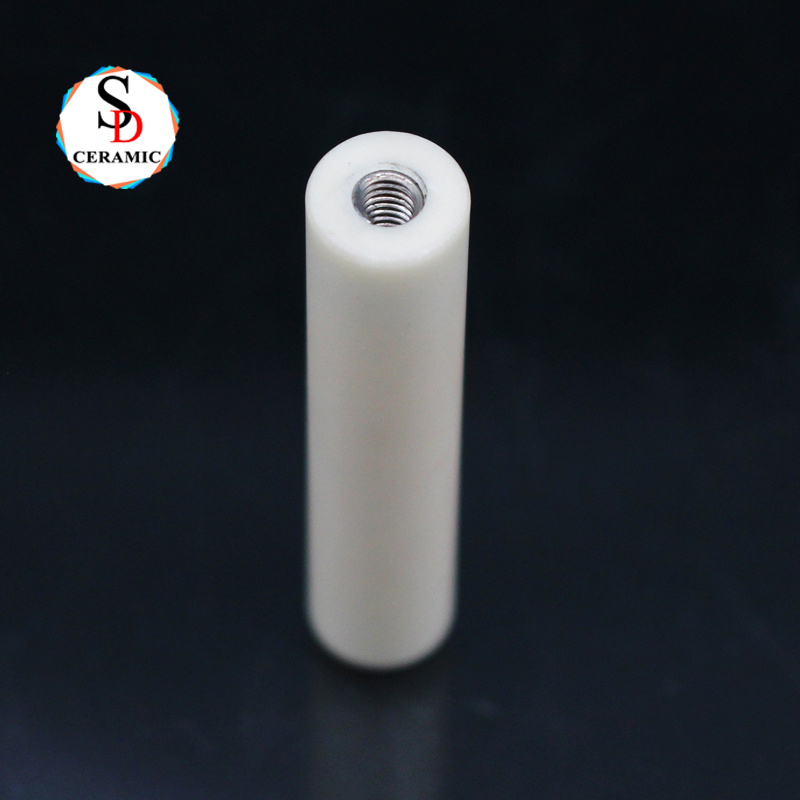

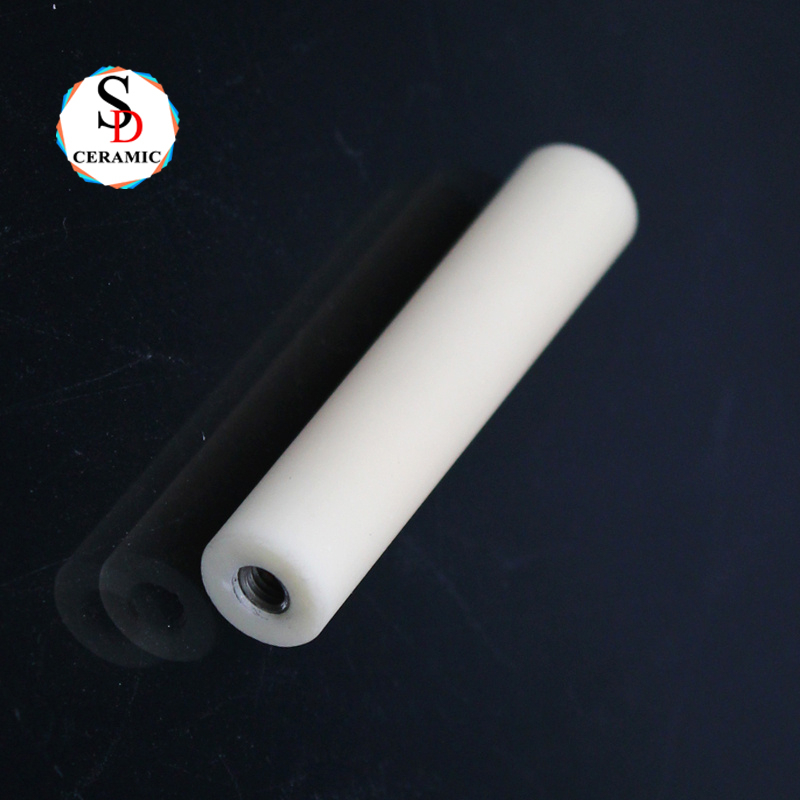

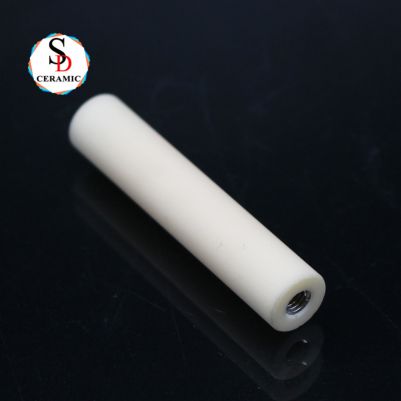

High Precision Customized 95% Alumina Ceramic Tube Rod with Helicoil Insert

Shengda Ceramic provide all kinds of Alumina Ceramic Engineering Ceramic Thin Substrate/Sheet/Plate/Board.

Product Introduction

Product Overview

Our 95% alumina ceramic tubes and rods with helicoil inserts represent the pinnacle of precision ceramic engineering, combining exceptional mechanical properties, thermal stability, and customizable threading solutions for mission-critical applications. These advanced ceramic components are ideal where high wear resistance, electrical insulation, and chemical inertness are paramount.


Key Features & Benefits

✔ Integrated Metal Threading - Helicoil inserts for durable fastening

✔ Superior Wear Resistance - Mohs hardness of 9 for long service life

✔ High-Temperature Stability - Operating range up to 1500°C (2732°F)

✔ Custom Configurations - Wide range of diameters, lengths, and thread types

✔ Chemical Immunity - Resists acids, alkalis, and corrosive environments


Critical Industrial Applications

1. Semiconductor Manufacturing

Wafer handling arms with precision threading

Vacuum chamber components requiring electrical isolation

Plasma etch equipment needing chemical resistance

2. Chemical Processing

Corrosion-resistant sensor housings

Reactor thermowells with secure mounting

Pump shafts for aggressive fluids

3. Medical Equipment

Sterilizable instrument components

MRI-compatible structural parts

Dental handpiece assemblies

4. Energy Systems

Fuel cell stack components

High-voltage insulator bushings

Thermocouple protection tubes

5. Automation & Robotics

Precision guide rods for cleanroom robots

Wear-resistant actuator components

Electrical isolation spacers


High Precision Customized 95% Alumina Ceramic Tube Rod with Helicoil Insert

High Precision Customized 95% Alumina Ceramic Tube Rod with Helicoil Insert


Competitive Advantages

Material Expertise - 15+ years in precision ceramic engineering

Application Support - Engineering consultation available

Rapid Prototyping - Quick-turn sample development

Global Logistics - Reliable international shipping

Technical Parameters

Properties
Units
Steatite Ceramic
Cordierite Ceramic
Mullite
Ceramic
95%
Al2O3
99%
Al2O3
Zirconia
Ceramic
Silicon
Nitride
Colour

White
Yellow
White
White
Ivory
White
Grey
Density
g/cm3
2.7
1.9
2.6
3.5
3.85
6
3.2
Flexural Strength
Mpa
140
30
120
280
340
1150
600
Compressive Strength
MPa
900
350
500
2100
2200
2500
2500
Max Use Temperature
°C
1000
1200
1300
1400
1650
1500
1800
Thermal Condutivity
W(m.K)
2~3
1.3~1.8
2~6
16~28
19~30
2.5
20
Thermal Expansion Cofficient
10-6/°C
7 ~ 9
1.5~3.5
5~6
6.5~7.5
6~8
8~10
3~4
ThermalShock Resistance
△TC
100
300
150
140
150
250
600
Specific Heat
J/kg.K
850
800
900
950
950
500
500
Dielectric Strength
KV/mm
20
30
12
10
5
20
Dielectric Constant
Er
6
8
9
9
12
6

Production process

Precision CNC Alumina Ceramic Setter Flat Plate


Certifications

Precision CNC Alumina Ceramic Setter Flat Plate

Precision CNC Alumina Ceramic Setter Flat Plate

Our advantage

● Certificates: ISO & SGS

● OEM & ODM: OEM & ODM service is available

● Strict testing procedures :Meeting the requirements of the product design and process, providing reliable testing data.

● Short Delivery time:If less than 1000 pieces, it only takes around 5 days. We also stock some standard-sized products, if you need urgently, we can delivery very soon.

● Best ex-factory price

● Worldwide customers

● Customized according to needs

● Continuous research and development of new products

● Customer service:If you find some quality problem, please contact us, we’ll deal with it as soon as possible.


Packaging and shipping


Precision CNC Alumina Ceramic Setter Flat Plate

Our customers have a wide range of processing choices for transportation mode.

Precision CNC Alumina Ceramic Setter Flat Plate

Our Main Products

Precision CNC Alumina Ceramic Setter Flat Plate


Company Profie

Zirconia Ceramic Screw Nuts


   Yixing Shengda Refractory Ceramic Co., Ltd, established in 1995, Yixing, China with an area of 4,000 square meters and fixed assets of over 1 million US dollars, is a professional manufacturer of Steatite Ceramic Parts, Alumina Ceramic Parts, Cordierite Ceramic Parts, Ceramic Band Heater Insulators, Ceramic Terminal Block, Thermostat Ceramic Parts, Zirconia Ceramics Parts, Ceramic Heater Plugs, etc.

    Shengda Ceramic equipped with CAD/CAXA/Solidworks software to provide professional OEM & ODM service.

    Looking forward to co-operating with the customers from all over the world!
