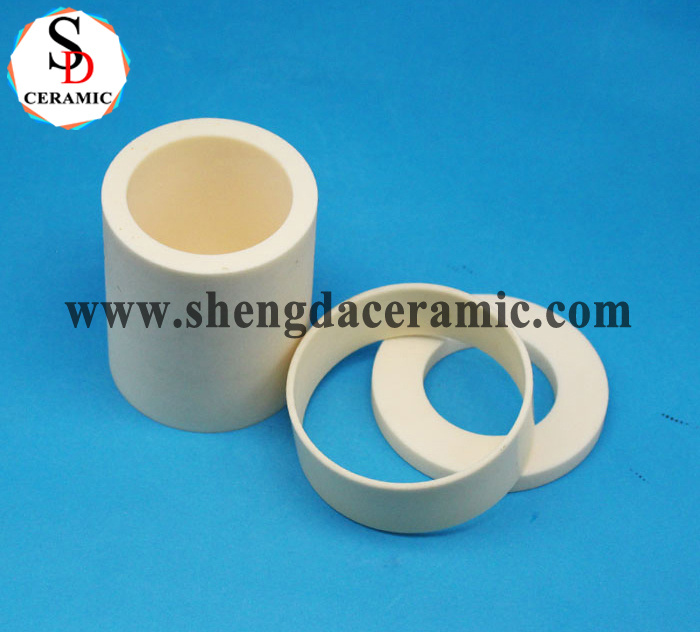

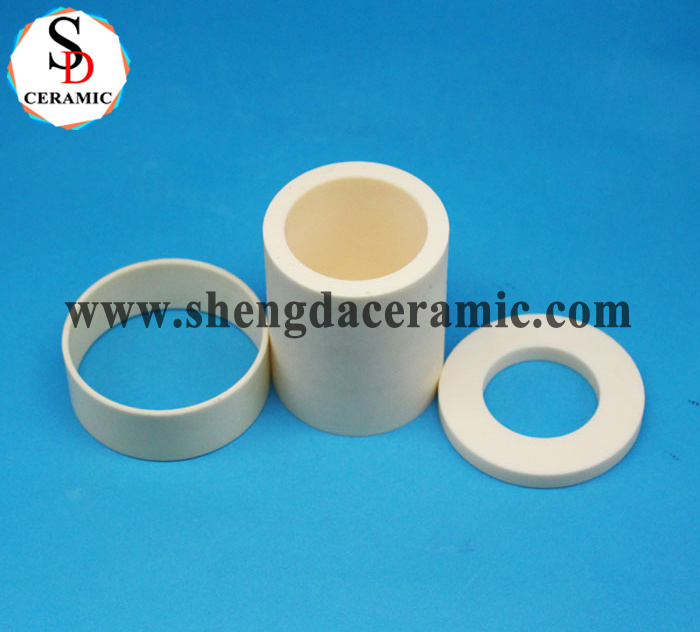

High Density 95% Alumina Ceramic Machining Ceramic Sleeve

Alumina Ceramic Main Features

1. High hardness

2. High heat resistance

3. Good wear resistance

4. High electrical resistivity

5. High corrosion resistance


Product Introduction

Product description

Alumina Ceramic have a high melting point, high hardness,although mechanical strength is reduced at temperatures above 1000 C. Due to the relatively large coefficient of thermal expansion, thermal shock resistance is reduced. So it is widely used for many mechanical parts which request very high temperature.

Shengda Ceramic provide all kinds of 2, 4, 6 holes alumina ceramic tubes. Also the rings, rods, tubes, plates, inserts, bushing, sleeves, blocks, plunger and so on. Any dimension requirement, please contact us.

High Density 95% Alumina Ceramic Machining Ceramic Sleeve

High Density 95% Alumina Ceramic Machining Ceramic Sleeve

 Customized Heat Resistant Alumina Ceramic Spacer

Technical Parameters

Properties
Units
Steatite Ceramic
Cordierite Ceramic
Mullite
Ceramic
95%
Al2O3
99%
Al2O3
Zirconia
Ceramic
Silicon
Nitride
Colour

White
Yellow
White
White
Ivory
White
Grey
Density
g/cm3
2.7
1.9
2.6
3.5
3.85
6
3.2
Flexural Strength
Mpa
140
30
120
280
340
1150
600
Compressive Strength
MPa
900
350
500
2100
2200
2500
2500
Max Use Temperature
°C
1000
1200
1300
1400
1650
1500
1800
Thermal Condutivity
W(m.K)
2~3
1.3~1.8
2~6
16~28
19~30
2.5
20
Thermal Expansion Cofficient
10-6/°C
7 ~ 9
1.5~3.5
5~6
6.5~7.5
6~8
8~10
3~4
ThermalShock Resistance
△TC
100
300
150
140
150
250
600
Specific Heat
J/kg.K
850
800
900
950
950
500
500
Dielectric Strength
KV/mm
20
30
12
10
5
20
Dielectric Constant
Er
6
8
9
9
12
6



Features

1) A variety of specifications available.

2) Satisfy various technical request

3) Lower medium spoilage

4) Good insulation performance and high temperature resistance

5) High strength

6) Used in all electric products, electric heating products and wear resistant machinery parts.

7) OEM, ODM and OBM are welcomed


Production process

Precision CNC Alumina Ceramic Setter Flat Plate



Certifications

Precision CNC Alumina Ceramic Setter Flat Plate

Precision CNC Alumina Ceramic Setter Flat Plate

Our advantage

● Certificates: ISO & SGS

● OEM & ODM: OEM & ODM service is available

● Strict testing procedures :Meeting the requirements of the product design and process, providing reliable testing data.

● Short Delivery time:If less than 1000 pieces, it only takes around 5 days. We also stock some standard-sized products, if you need urgently, we can delivery very soon.

● Best ex-factory price

● Worldwide customers

● Customized according to needs

● Continuous research and development of new products

● Customer service:If you find some quality problem, please contact us, we’ll deal with it as soon as possible.


Packaging and shipping


Precision CNC Alumina Ceramic Setter Flat Plate

Our customers have a wide range of processing choices for transportation mode.

Precision CNC Alumina Ceramic Setter Flat Plate


Our Main Products

Precision CNC Alumina Ceramic Setter Flat Plate


Company Profie


Zirconia Ceramic Screw Nuts



   Yixing Shengda Refractory Ceramic Co., Ltd, established in 1995, Yixing, China with an area of 4,000 square meters and fixed assets of over 1 million US dollars, is a professional manufacturer of Steatite Ceramic Parts, Alumina Ceramic Parts, Cordierite Ceramic Parts, Ceramic Band Heater Insulators, Ceramic Terminal Block, Thermostat Ceramic Parts, Zirconia Ceramics Parts, Ceramic Heater Plugs, etc.

    Shengda Ceramic equipped with CAD/CAXA/Solidworks software to provide professional OEM & ODM service.

    Looking forward to co-operating with the customers from all over the world!
